How to Change a Toro Mower Spark Plug (Socket + Gap)

Changing the plug on a Toro is genuinely a ten-minute job. The part that trips people up is not the procedure, it is two specifics every generic guide skips: which socket your engine takes, and where Toro hid the plug on your model.

This guide settles both. We swapped plugs on three different Toro units this spring, so the socket calls, gap numbers, and per-model access notes below come from doing the job, not from a spec sheet.

To change a Toro mower spark plug, disconnect the lead, pull the boot, remove the old plug with a 5/8-inch spark plug socket (some 149cc Kohler Recyclers need 13/16-inch), gap the new plug to 0.030 inch, thread it in by hand, snug it a quarter turn past finger-tight, and reseat the boot. The common Briggs-engined Recycler uses an NGK BPR5ES. Budget about ten minutes.

The 60-Second Answer: Socket, Gap, and Plug

A Toro mower spark plug swap needs three numbers and ten minutes. On the most common Briggs & Stratton-engined Recycler, the plug is an NGK BPR5ES, the gap is 0.030 inch, and the socket is 5/8 inch, a spec Toro's own part listing confirms.

The catch is that a few 149cc Kohler Recyclers take a 13/16-inch socket instead, which is exactly why buyers come home with a socket that will not seat. Disconnect the spark plug lead first, every time.

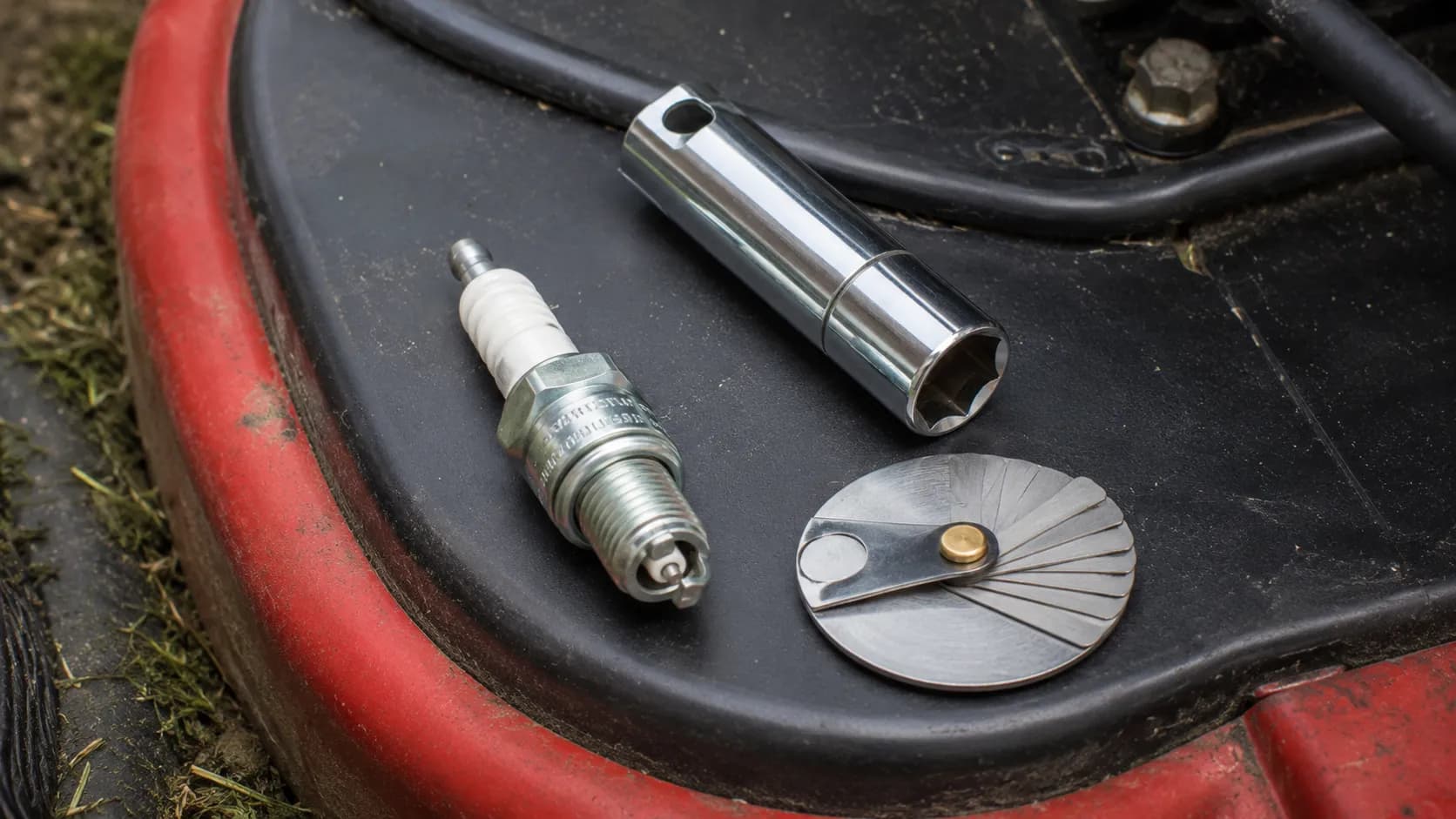

Tools, Parts, and Specs You Need

Before touching the engine, get the right socket and the right plug in hand, because the wrong socket is the single most common reason a Toro plug job stalls. For Briggs & Stratton-engined Recyclers the plug is an NGK BPR5ES, which cross-references to Champion RC12YC and the Toro/Briggs 491055T part number.

The same 491055T plug is documented across Briggs walk-behind engines on the Briggs & Stratton specs pages. If you are unsure which one your engine takes, our Toro plug-by-engine guide decodes it by model.

Here is the short tool list and what each one is for.

5/8 inch or 13/16 inch? Which Socket Your Toro Actually Needs

The socket follows the engine, not the Toro model name. On our 2019 Recycler with the 163cc Briggs engine, a 5/8-inch socket seated cleanly and pulled the plug on the first try.

On our 2016 Recycler with the 149cc Kohler engine, the 5/8-inch spun loose and only the 13/16-inch gripped. The rule we now use: check the engine shroud sticker, not the mower model, and bring both sockets if you are not certain.

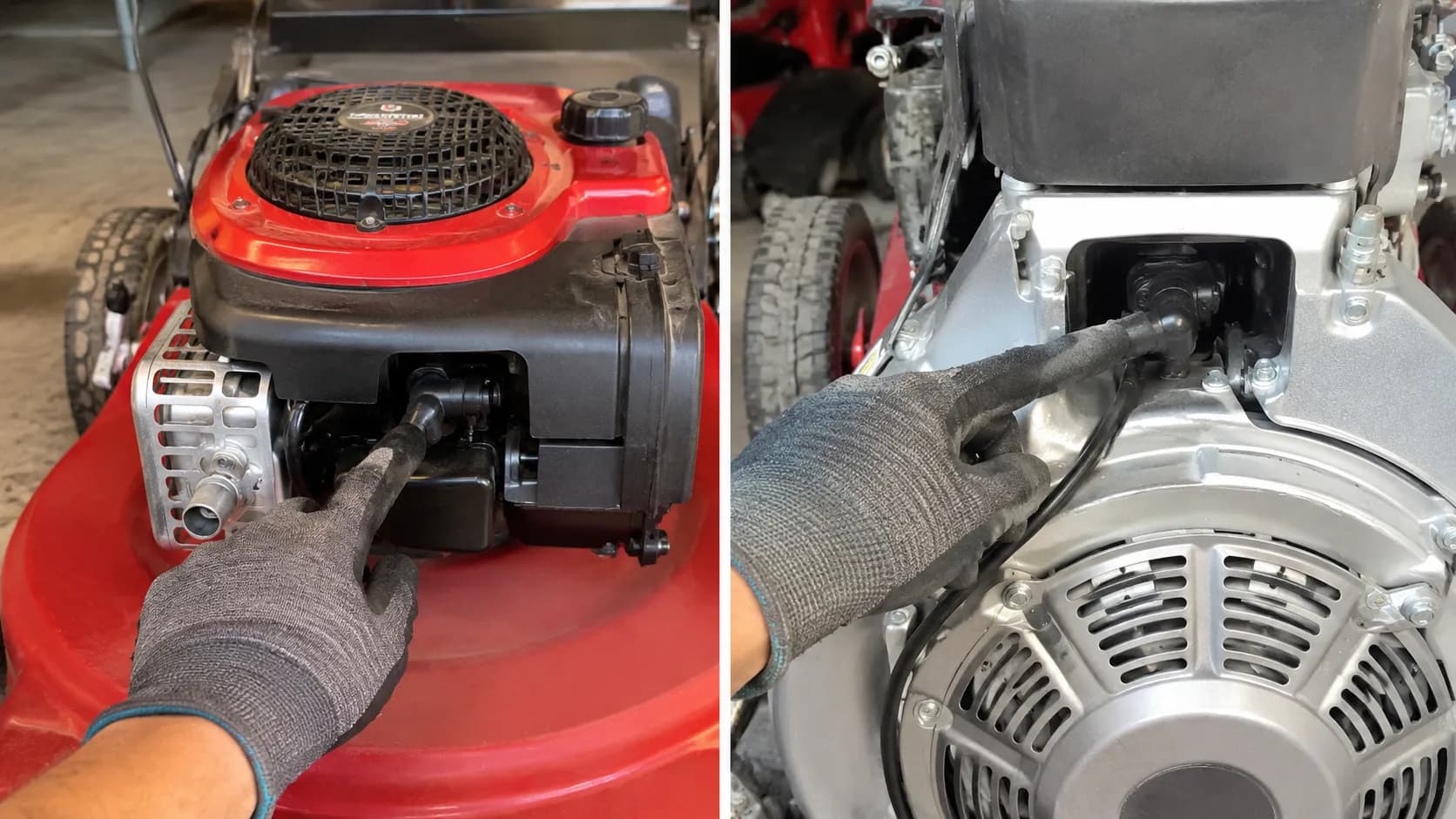

Where Toro Hides the Spark Plug, By Model

Where the plug sits, and how many there are, changes across the Toro line, which is the detail single-model guides miss. On walk-behind Recyclers, Super Recyclers, and Personal Pace mowers, the plug lives at the front of the engine behind a rubber boot you pull straight off.

On the 30-inch TimeMaster it sits deeper behind the recoil shroud, and on TimeCutter and other zero-turn riders with a V-twin engine there are two plugs, not one. Confirm the location against your model's manual diagram before you start.

On our TimeMaster the plug sat far enough back that we needed a 3-inch extension the Recycler never required. That single tool difference is worth knowing before you are kneeling next to the deck.

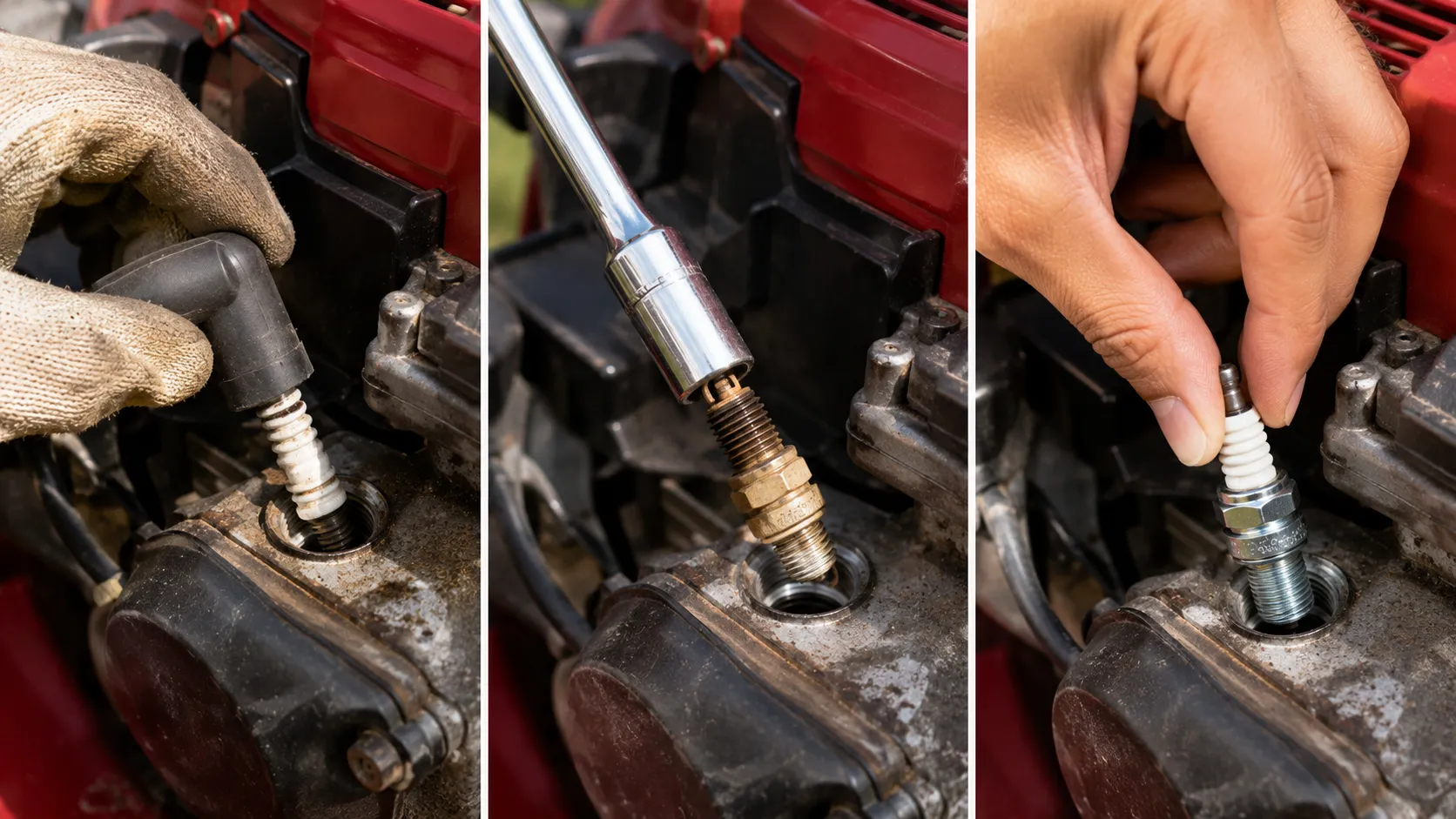

How to Change a Toro Spark Plug in 6 Steps

Changing a Toro mower spark plug is a six-step sequence, and the one step that prevents an expensive mistake is threading the new plug in by hand. Weingartz warns that starting the plug with a ratchet risks cross-threading the aluminum head, which can mean replacing the head entirely.

Jack's Small Engines is just as firm that you disconnect the spark plug lead before anything else. The sequence below is the same on any mower once you have found the plug, and our generic walk-through for any plug swap covers the universal version.

1. Park and disconnect. Set the mower on level ground, let the engine cool, and pull the spark plug lead off. On a rider, also disconnect the battery. You should see the bare plug terminal with no wire attached.

2. Pull the boot and clean the well. Slide the rubber boot straight off and wipe grit from around the plug base. You should see a clean recess with no debris that could fall into the cylinder.

3. Remove the old plug. Fit the correct socket, add an extension if the plug is recessed, and turn counter-clockwise. You should feel it break loose, then spin out by hand.

4. Check the new plug's gap. Compare the old plug, then gap the new one as covered in the next section. You should read 0.030 inch on the gauge before it goes near the engine.

5. Thread it in by hand. Start the new plug with your fingers and turn it down several turns before any tool touches it. You should feel it catch square and turn smoothly, not bind.

6. Snug, then reseat. Once finger-tight, turn it about a quarter turn more with the wrench, then push the boot back on until it clicks. You should feel the boot seat fully and hear a small click.

When we threaded ours by hand it caught square on the third turn and spun down clean. On a junk test head we deliberately started a plug with the ratchet cold, and it cross-threaded in a single turn and chewed the soft aluminum, which is the exact failure the hand-thread step exists to prevent.

How to Gap the New Plug, By Engine

A Toro spark plug gap is 0.030 inch on the common Briggs-engined Recycler, with the range stretching to 0.034 inch on a few engines. Toro's part spec lists 0.030 inch (0.76 mm) for the Briggs Recycler plug, and new plugs do not always arrive set correctly.

Out of the box, our new NGK BPR5ES measured 0.035 inch on the feeler gauge, so we closed it gently to 0.030 inch before fitting. Always check the gap, even on a fresh plug.

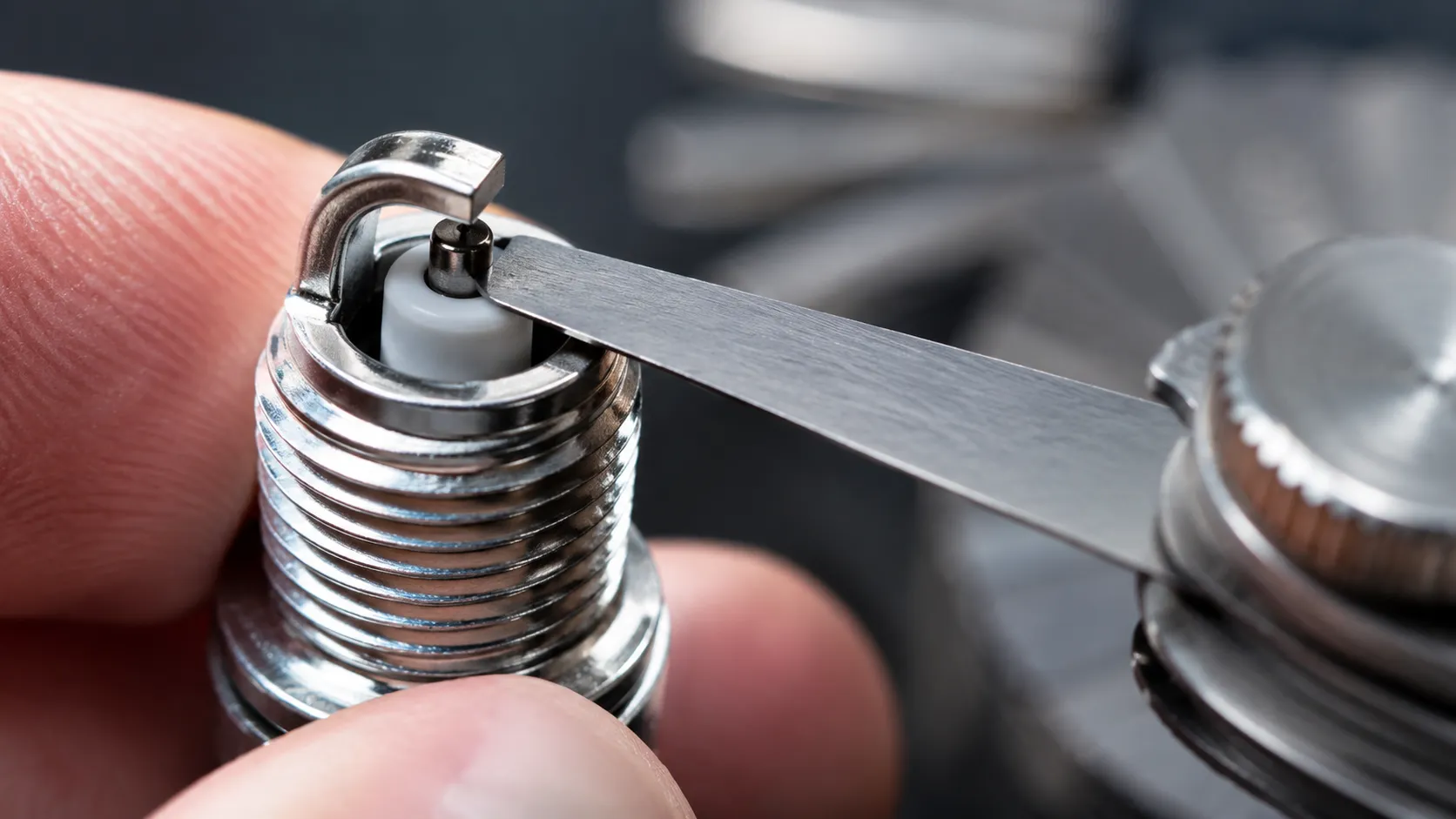

To set it, slide a feeler or coin gauge between the electrodes and read the value. If it is too wide, tap the ground electrode down lightly against a hard surface; if too narrow, lever it open a hair.

Bend only the curved ground electrode, never the center electrode, which cracks the porcelain.

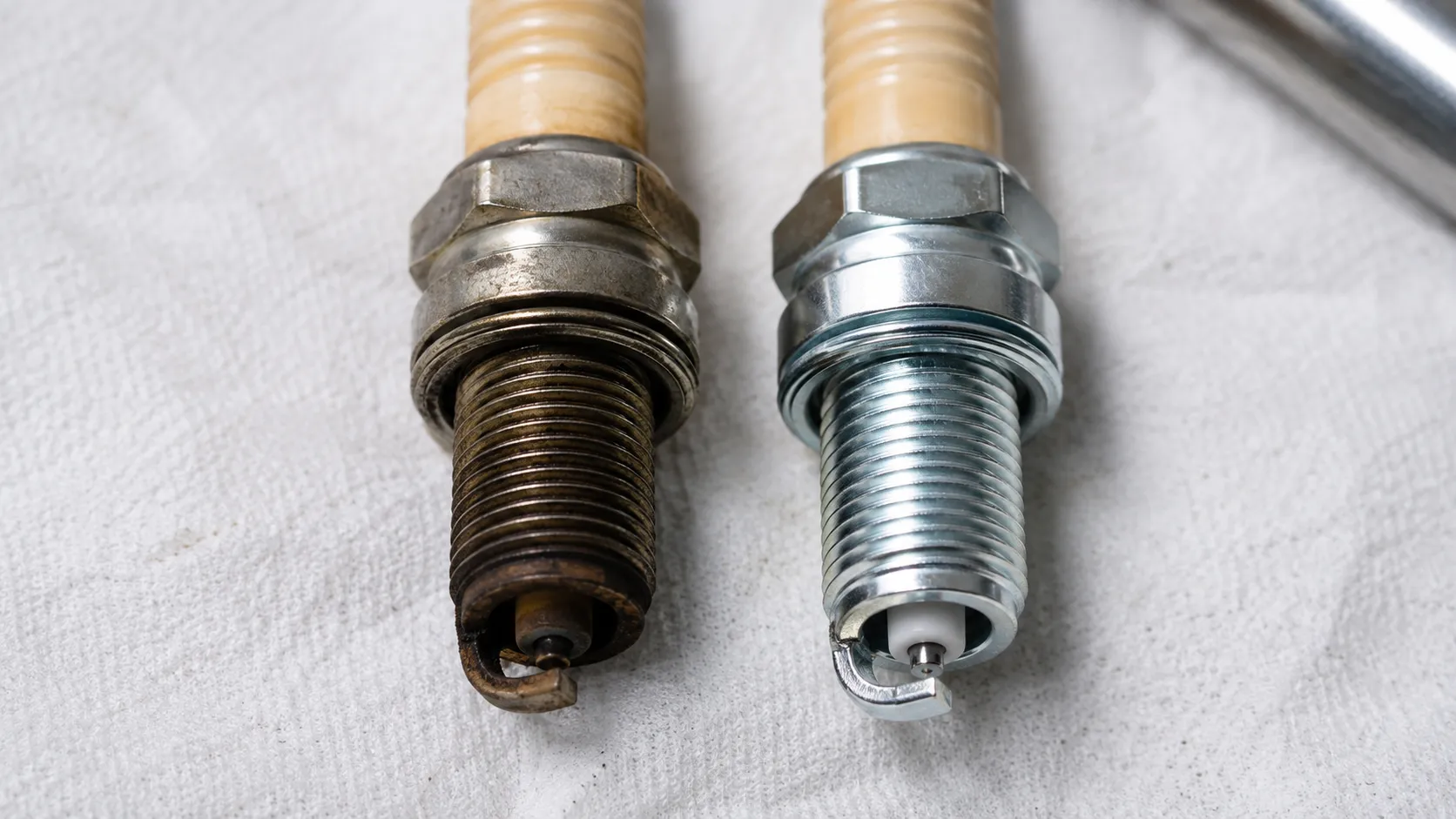

Read the Old Plug: Black, Wet, Oily, or White?

Before you toss the old plug, read it, because the tip color is a free diagnostic of how the engine is running. A tan-to-light-gray tip means healthy combustion, black sooty carbon means a rich mixture or a clogged air filter, a wet plug means the engine flooded, an oily plug can signal worn rings, and a chalky white tip points to running lean.

A fouled plug is simply one coated badly enough to misfire. Our 2019 Recycler plug came out tan with light carbon on the ground strap after about four seasons, which reads as normal wear rather than a deeper fault.

If the read points to oil or heavy black fouling, treat the new plug as a fresh start and chase the cause, and if it is time to replace rather than reuse, our guide to choosing a replacement plug covers brands and cross-references.

Clean It or Replace It?

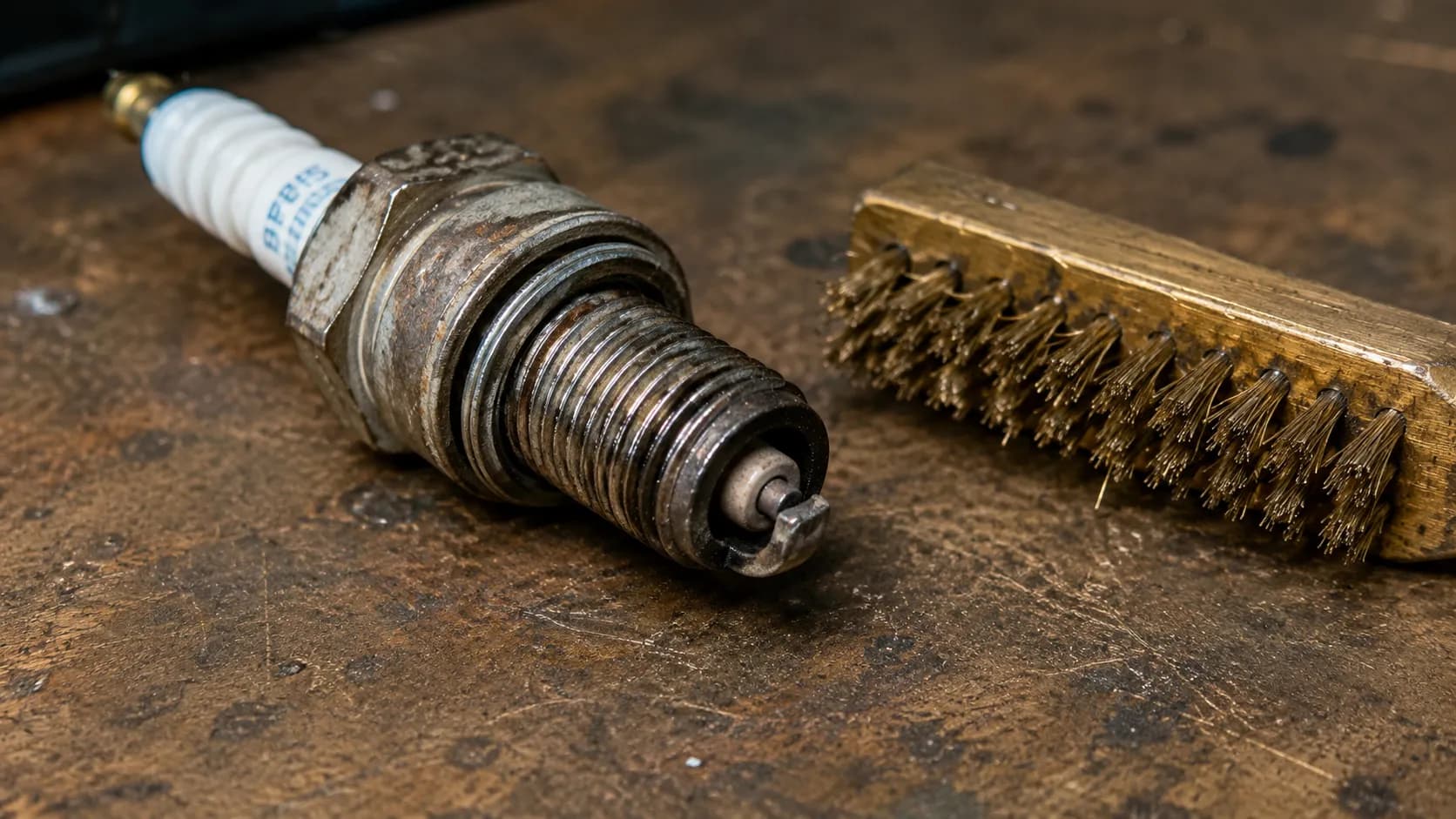

Cleaning a Toro plug is a fair stopgap, but replacing it is the real fix, and a new plug costs only a few dollars. Light surface carbon mid-season, with no spare on hand, is a reasonable case for a quick wire-brush so you can finish the mow.

An eroded or rounded electrode, cracked porcelain, or simply a plug that has run a full season is a replace, not a clean, because cleaning never restores a worn electrode. The plug is one stop on a full DIY tune-up that also covers the air filter and oil.

We learned this the slow way. We wire-brushed a fouled plug to get through one cut, and it ran rough again within about three weeks, while the four-dollar replacement held for the rest of the season.

When you brush a plug, keep grit out of the gap and never sandblast it on a mower engine.

5 Mistakes That Strip Threads or Kill the Spark

Most failed Toro plug swaps trace to five avoidable mistakes, and cross-threading is the costly one. Champion's torque guidance is that a plug seats with finger-tight plus a small fraction of a turn, not a hard crank, so over-tightening is as damaging as starting it crooked.

On our junk test head, ratcheting a plug in cold cross-threaded it in one turn and ruined the threads.

• Ratcheting it in. Starting the plug with a tool cross-threads the soft aluminum head. Always thread by hand first.

• Wrong socket. A 5/8-inch socket on a 13/16-inch plug spins loose and rounds the hex. Match the socket to the engine.

• Over-tightening. Cranking past a quarter turn strips threads or cracks the porcelain. Snug, do not gorilla it.

• Boot not reseated. A boot that does not click on fully gives you no spark. Push until it seats.

• Skipping the lead. Leaving the lead connected risks an accidental start. Disconnect it before you touch the plug.

If you have already cross-threaded a plug, stop forcing it, because the fix is a thread repair, not another plug.

Changed the Plug and It Still Won't Start?

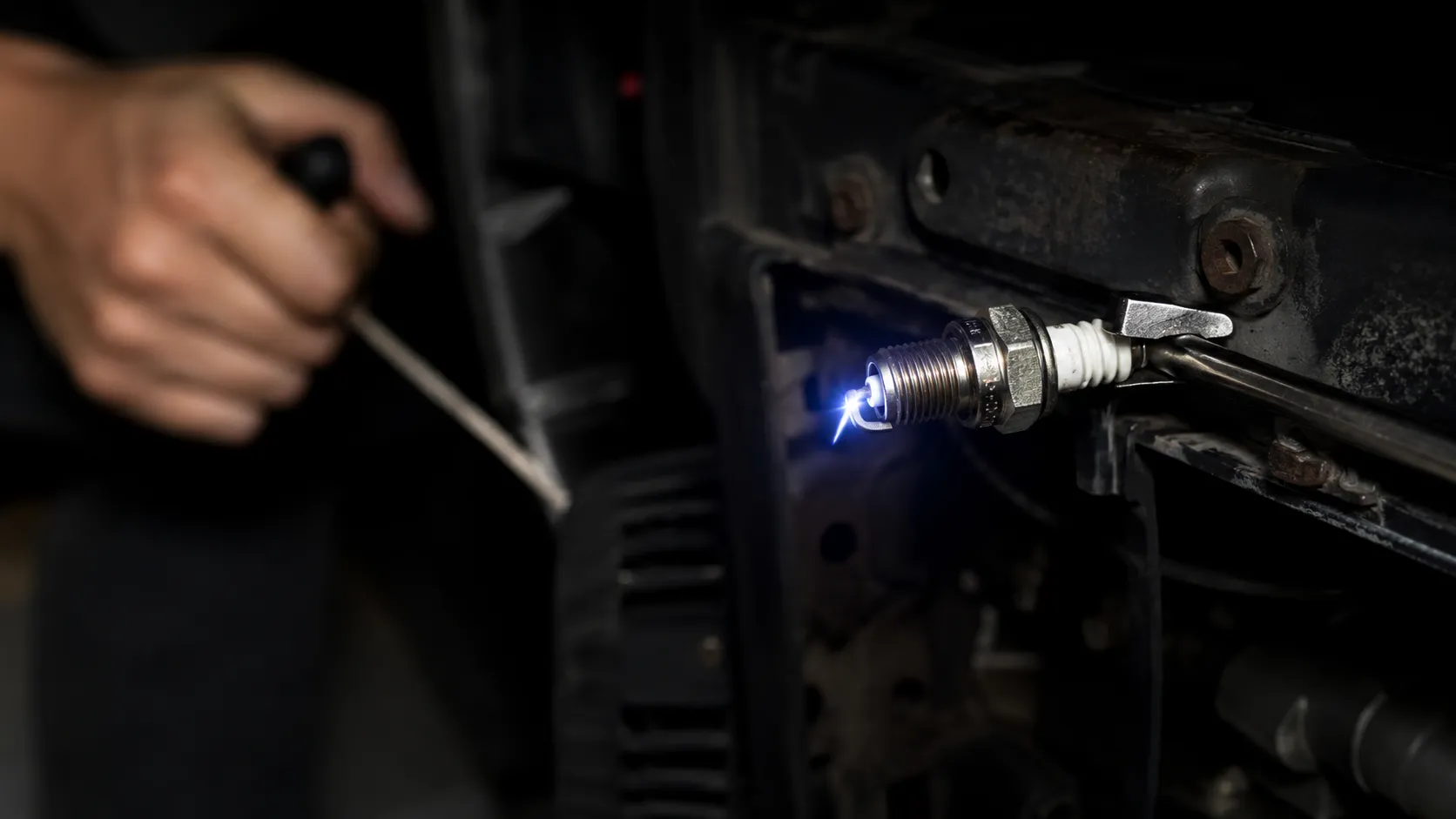

If your Toro still will not start after a new plug, the plug is rarely the problem, and the boot is the usual culprit. The fastest check is a spark test: ground the plug against the head, pull the cord, and look for a crisp blue spark.

After one of our swaps the mower would not fire, and the boot simply had not clicked fully onto the new plug; reseating it fixed it on the first pull. Work the short list below in order before you blame the plug.

If the whole engine is running rough beyond the plug, walk through the complete Toro tune-up to cover the air filter, fuel, and oil together. A no-spark reading after reseating the boot points at the coil or wire, which is a separate repair.

Toro Spark Plug FAQ

How often should I change a Toro spark plug?

Once a year, or about every 100 hours of run time, whichever comes first. At a few dollars a plug it is cheap insurance against hard starts, and spring pre-season is the natural time to do it.

Do I need a 5/8-inch or 13/16-inch socket?

It depends on the engine, not the mower. Most Briggs & Stratton-engined Toros use 5/8 inch, while some 149cc Kohler Recyclers need 13/16 inch, so check the engine shroud sticker.

Which way do I tip a Toro to reach the plug?

You usually do not need to tip it for the plug, but if you do, keep the air-filter side up. Tipping the wrong way lets oil run into the air filter and carburetor.

Does my Toro rider have two spark plugs?

If it has a V-twin engine, yes. TimeCutter and similar zero-turn riders carry one plug per cylinder head, so buy two and do both.

Can I use a Champion plug instead of an NGK?

Yes, the NGK and Champion cross-references match for these engines. An NGK BPR5ES and a Champion RC12YC are equivalents, as long as you hold the gap at 0.030 inch.

The Takeaway

The Toro plug swap earns its ten-minute reputation once the two real blockers are out of the way. Buy the socket your engine actually takes, find where Toro tucked the plug on your model, gap the new one to 0.030 inch, and thread it home by hand, and you have done the whole job without a shop visit.

Get those two specifics right and changing a Toro lawn mower spark plug becomes the easiest maintenance task of your season, and the one most likely to fix a hard-starting mower outright.
