Toro Tune-Up Kit Finder: Match 6 Kits to Your Engine

The hardest part of a Toro tune-up is not the wrenching. It is buying the one kit that actually fits your engine and serial range, because Toro sells at least six different maintenance kits and your mower's name does not tell you which is yours.

Grab the wrong box and you end up with an air filter that will not seat and a spark plug that does not match.

This guide makes that match in about two minutes. Decode your engine and serial first, then read the finder to land on a specific kit, what is inside it, and whether the genuine Toro kit or a cheaper third-party kit is the smarter buy this spring.

The Quick Answer: Which Toro Tune-Up Kit Do You Need?

A Toro tune-up kit is matched to your engine, not to your mower's model name. Walk-behind mowers with a Toro engine take kit 20240, while a Briggs & Stratton engine takes 20234 or the newer EXi kit 20298.

TimeCutter zero-turns are a separate family: 20294 for the Kohler V-twin, 20295 for a single-cylinder Toro engine, and 20296 for the Toro twin. According to Toro's 20240 listing, each kit bundles oil, an air filter, a spark plug, and fuel treatment sized for that specific engine.

Here is the trap to avoid: two mowers that look identical on the deck can carry different engines, and the kit follows the engine. So before you add anything to a cart, find your engine brand and serial range using the two-minute decode below, then drop down to the finder.

The short version: Toro engine walk-behind takes the 20240. Briggs walk-behind takes the 20234 or 20298. TimeCutter zero-turn takes a 20294, 20295, or 20296. Everything else is detail.

Find Your Toro: Model, Engine and Serial in 2 Minutes

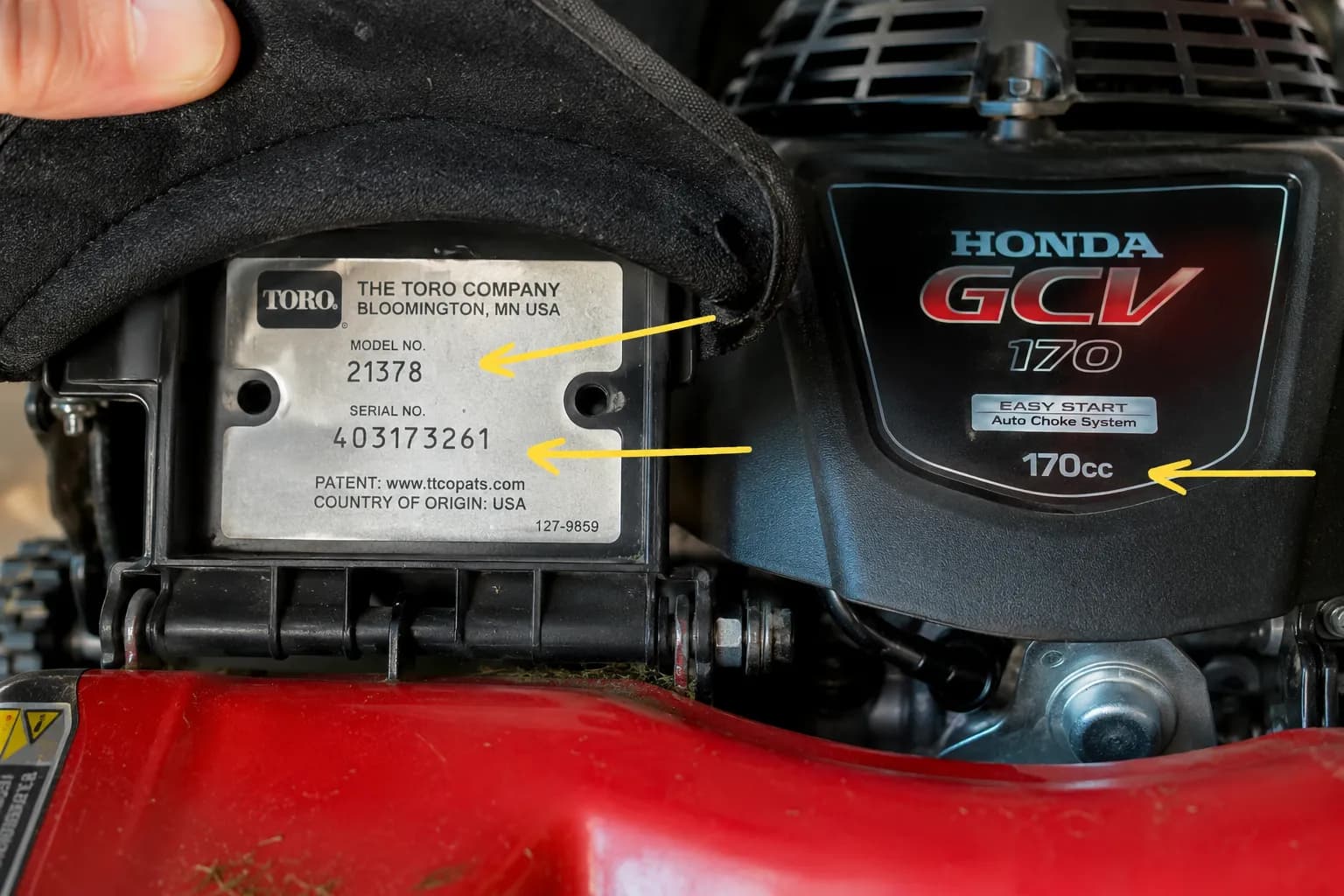

Identifying a Toro mower for kit-buying takes three inputs: the model number, the engine brand, and the serial range. On most Toro walk-behinds the model and serial tag sits on the back of the housing under the bag-retaining flap, while TimeCutter zero-turns carry it on the frame near the seat.

Toro's model and serial guide confirms those locations. The reason this step matters is simple: as the forums put it, getting the right kit is half the battle, and the engine label is what wins it.

Start with the engine, because the engine gates the kit. Look at the engine's own label, not the deck sticker.

• A Toro-built engine often reads as a Toro single-cylinder unit, sometimes badged R-tek on older Recyclers.

• A Briggs & Stratton engine says Briggs & Stratton, with a displacement like 140cc, 149cc, 163cc, or 190cc.

• A newer Briggs reads EXi, which routes you to the 20298 rather than the older 20234.

• A Kohler badge on a zero-turn points you to the TimeCutter Kohler kit.

Next, read the serial range, because it sets the generation. A worked example: many Personal Pace and 22 inch Recycler models built in 2016 and earlier use a white air filter with blue trim, a visual cue that tells you which kit generation fits before you ever read a part number.

If your tag is worn off or missing, a Toro dealer can identify the machine from the engine stampings. For the complete annual routine once you have the right kit, the complete Toro tune-up hub walks every step.

The Toro Tune-Up Kit Finder by Engine and Serial

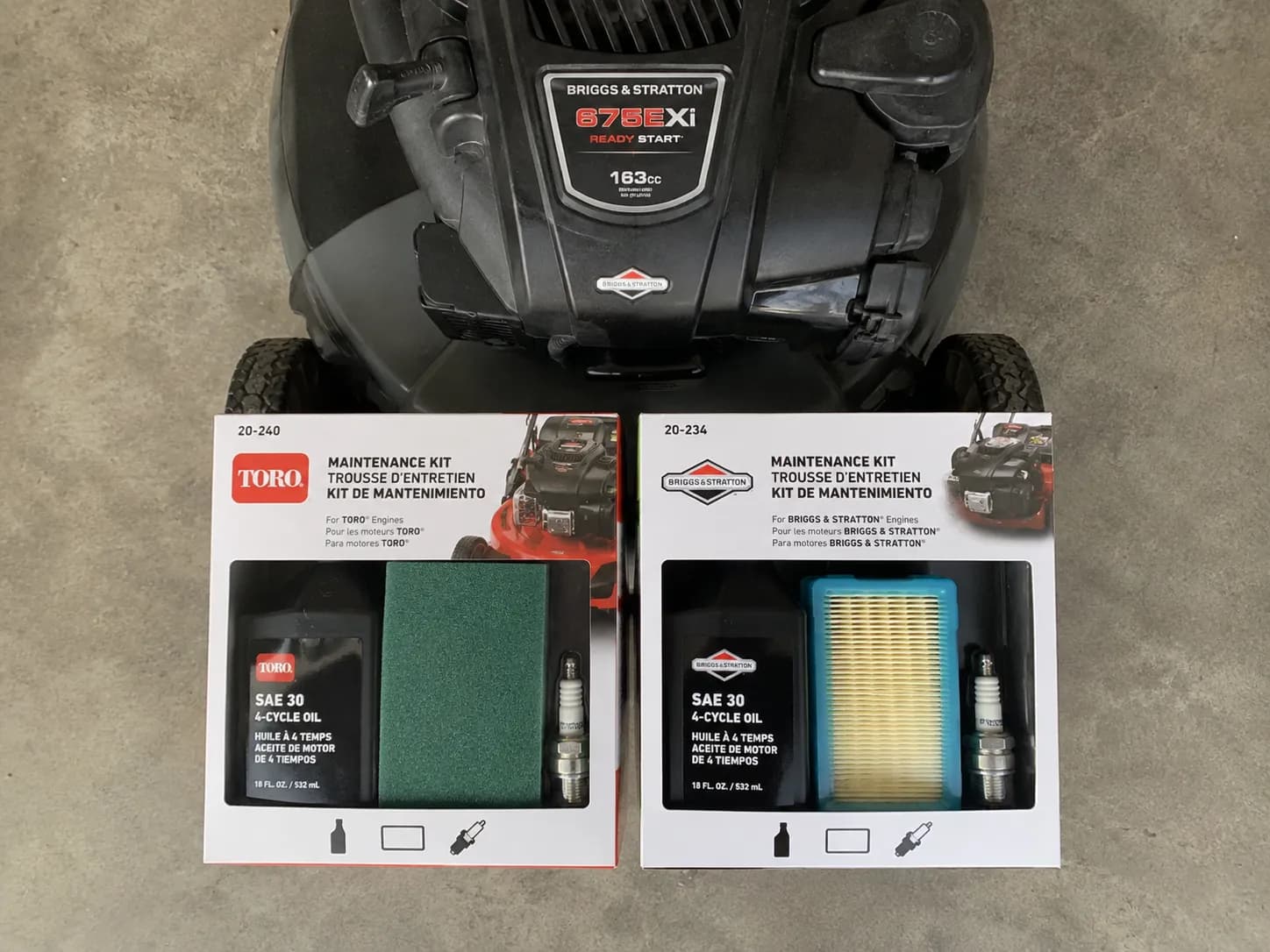

This is the table the rest of the web makes you assemble from five tabs. A 22 inch Recycler with a Briggs & Stratton 163cc engine takes kit 20234, which carries air filter 120-3303, spark plug 120-3305, 20 oz of SAE 30 oil, and a fuel-treatment packet; a Recycler with a Toro engine instead takes the 20240, with air filter 119-1909 and spark plug 121-4199.

The part numbers come straight from Toro's 20234 kit and the 20240 listing. Match the row to your engine and serial, then buy that kit number.

Prices and SKUs drift season to season, so the figures above are typical 2026 ranges; confirm your exact kit and current price on the retailer page before checkout. If your mower is not a Toro at all, the same engine-matching logic applies to any brand, and the broader guide on how to match a kit to any engine covers it.

Which kit fits my Personal Pace?

It depends on your engine, and most Personal Pace mowers run a Briggs & Stratton engine rather than a Toro one. A common case is the 20332 Personal Pace with a Briggs 163cc: that takes the 20234, not the 20240, which is exactly the mismatch that sends people back to the store.

Lift the bag flap, confirm the engine badge, then pick the matching row above. The Super Recycler, often shortened to SR4 in parts listings, follows the same rule: read the engine, not the trim name.

What's Inside Each Kit (and the Price-Per-Service Math)

Every Toro walk-behind tune-up kit holds the same four things: a bottle of oil, an air filter, a spark plug, and a small packet of fuel treatment. The 20240 ships with an 18 to 20 oz bottle of SAE 30, air filter 119-1909, spark plug 121-4199, and a 0.5 oz fuel-treatment packet, all sized for one annual service.

TimeCutter kits scale up to 2 qt of 10W-30 synthetic plus an oil filter because a zero-turn engine holds more oil. The fuel treatment is the quiet value: it is the part most owners forget to buy separately when they decide to SeaFoam it or otherwise stabilize the tank for storage.

Is the kit worth it, or should I just buy the parts?

For most owners, yes, the bundle wins on convenience and on the fuel treatment you would otherwise skip. When I priced the four 20234 parts separately at a local hardware store, the loose air filter, plug, and quart of oil landed within a couple of dollars of the boxed kit, and buying the kit saved a second trip for the stabilizer packet.

The math only flips if you already keep SAE 30 on the shelf, in which case a loose filter and plug can edge out the bundle. If you would rather buy one part at a time, you can replace just the filter matched by your engine number instead of the whole kit.

Walk-Behind vs TimeCutter: Don't Buy the Wrong Family

Toro walk-behind kits and TimeCutter zero-turn kits are different families, and they are not interchangeable. Walk-behinds use the 20240, 20234, or 20298; TimeCutter zero-turns use the 20294 for a Kohler V-twin or the 20296 for the Toro twin, with heavier oil and an added oil filter.

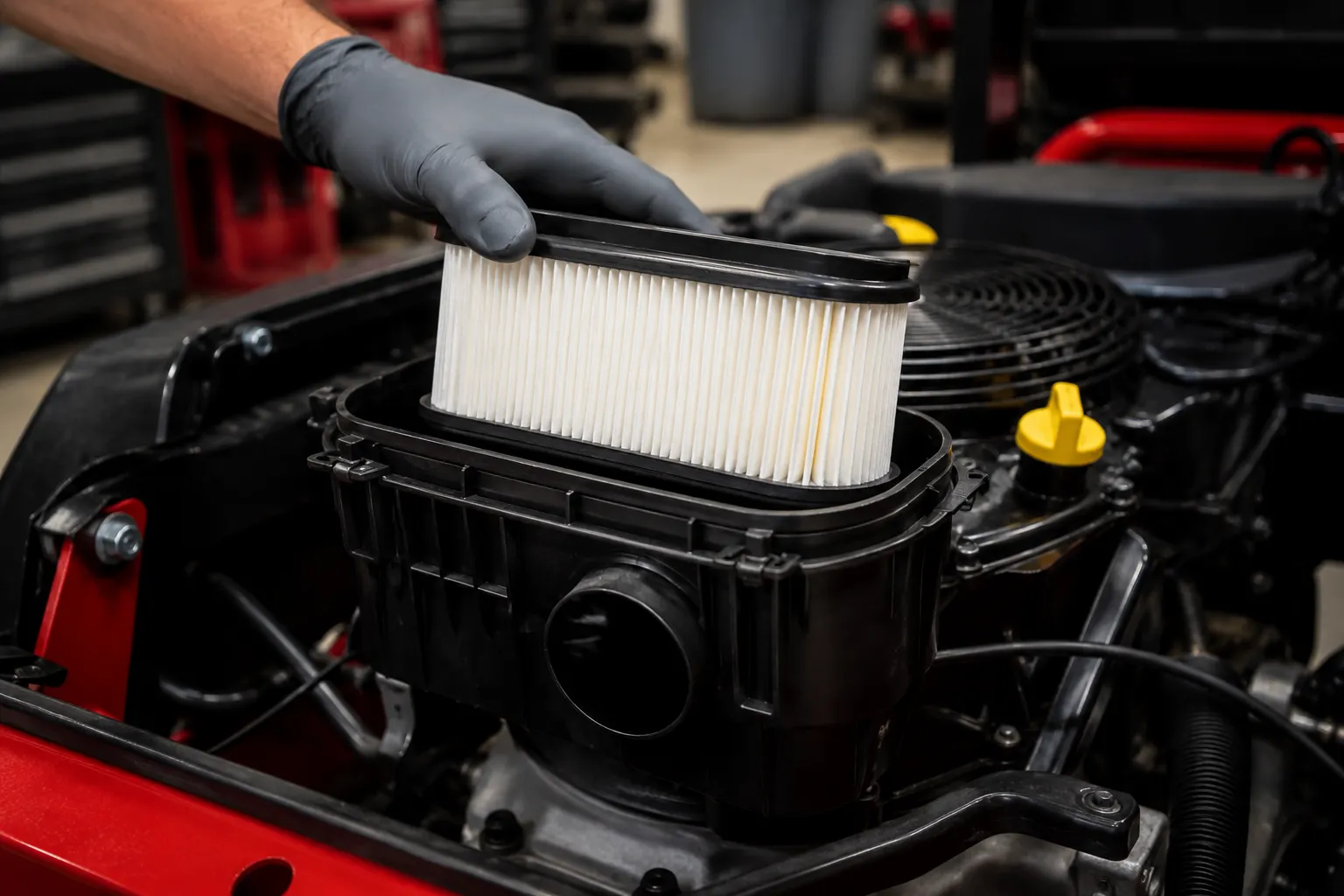

There is also a setup catch on the twin: Toro's TimeCutter kit page notes that the heavy-duty air filter in the 20296 requires the separate heavy-duty air-cleaner kit (136-7860) to be installed first.

I learned that one the hard way. On a TimeCutter with the Toro twin, the heavy-duty filter from the 20296 would not seat until I had fitted the 136-7860 air-cleaner housing, a dependency the SKU page mentions only in passing.

If your machine is a riding tractor in the LX or MX line, or a zero-turn running a Kawasaki FR691V, those fall outside these consumer kits, and the engine maker or a Toro dealer is the right source.

OEM vs Third-Party: Mower Shop, Proven Part and Generic Kits Compared

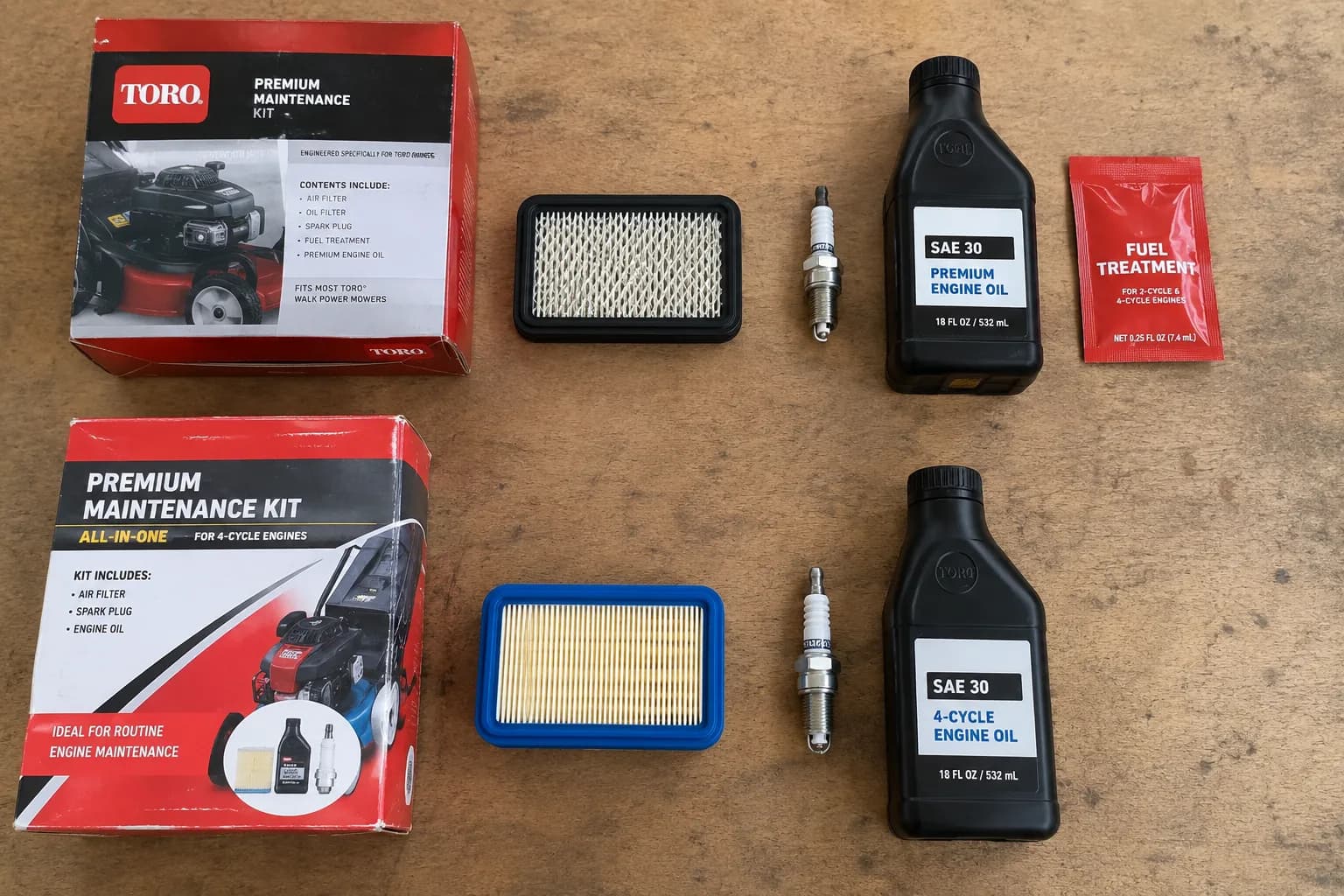

Reputable third-party kits use the same Briggs and Toro service parts as the genuine box, so they generally perform identically; the genuine Toro kit mainly buys you guaranteed fit and the fuel-treatment packet. The Mower Shop's kit for the 22 inch Recycler even adds a fresh Toro blade on top of the filter, plug, and oil, keyed to the engine and year.

The trade-off runs the other way too: Proven Part's kit for the Super Recycler uses the equivalent Briggs filter (491588-S) and plug (796112) but leaves out the fuel-treatment packet the Toro box includes.

So the verdict depends on what you value. The honest catch with third-party kits is that contents vary, so check the part numbers and whether fuel treatment is in the box before you buy.

Where to buy: the genuine kits stock at Home Depot, Lowe's, Ace Hardware, Amazon, and Tractor Supply, and prices move enough season to season that it pays to compare two retailers before checkout. A kit is only part of the job, and the full annual service runs the same on any push mower, so the generic guide on the full service routine covers the steps once your parts arrive.

How to Use Your Kit: The 30-Minute Spring Tune-Up

Once the right kit is in hand, a full Toro service takes about 30 minutes and follows a fixed order, with one safety step that always comes first. Doing all four jobs each spring is what gets a Recycler to start on the first pull instead of the fifth.

The cadence is once a year, ideally at pre-season, or roughly every 50 hours of run time for the spark plug.

Safety first: disconnect the spark-plug lead before you touch anything. With the wire off the plug, the engine cannot fire while your hands are near the blade.

1. Pull the spark-plug lead off the plug and set it aside.

2. Drain the old oil and refill with the kit's bottle to the dipstick mark.

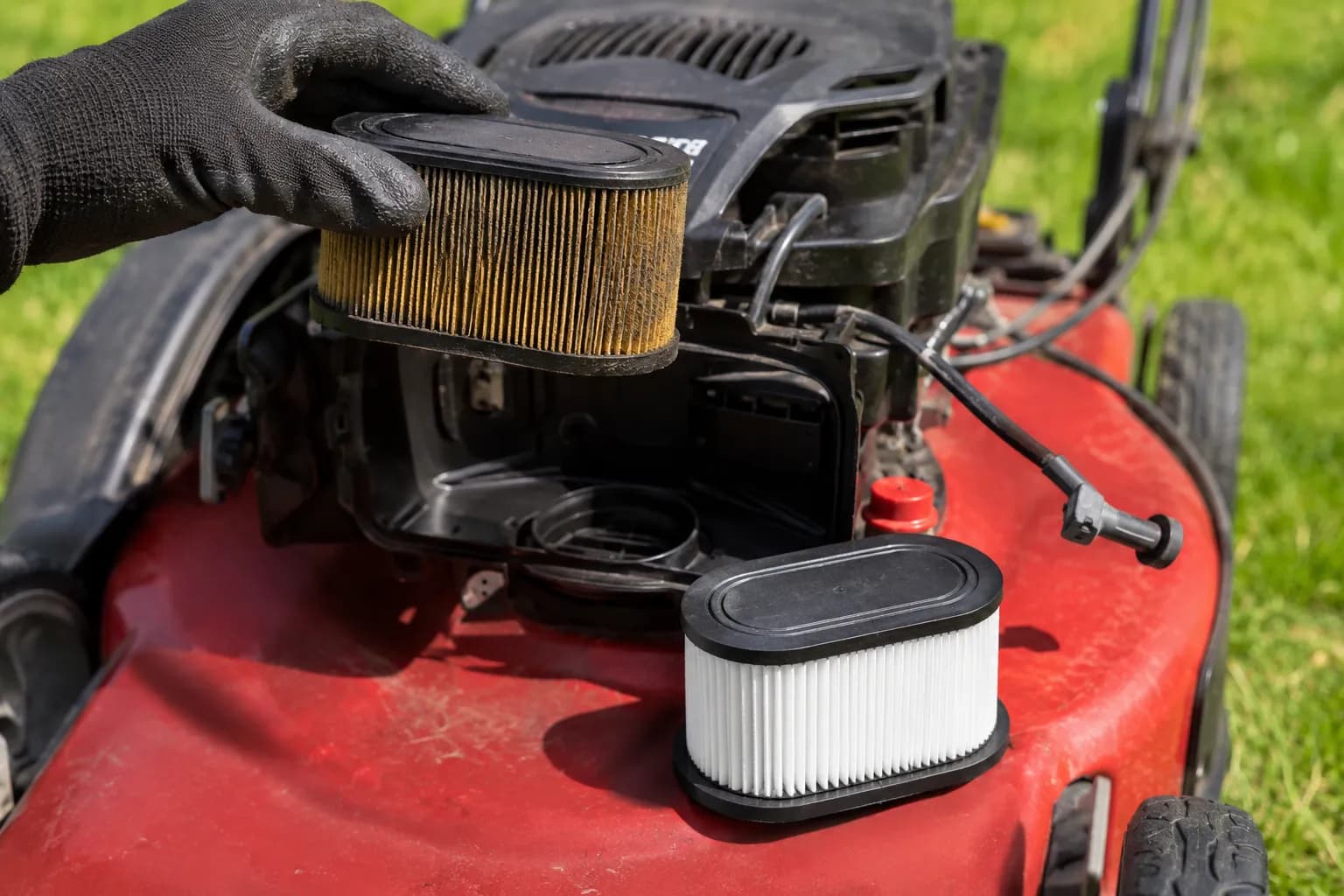

3. Swap the air filter, matching the new one to the old shape.

4. Remove the old spark plug, gap and fit the new one, then reconnect the lead last.

5. Treat the fresh fuel with the kit's stabilizer packet.

That fuel-treatment step is the one most people skip, and it is why their gas goes stale over winter. If you would rather choose and gap a plug yourself instead of using the kit's, the guide on how to pick the right spark plug walks the heat range and gap.

Toro Tune-Up Kit FAQ

What is included in a Toro tune-up kit?

A Toro walk-behind tune-up kit includes a bottle of SAE 30 oil, an air filter, a spark plug, and a small fuel-treatment packet, all matched to one engine. TimeCutter kits add an oil filter and use 2 qt of 10W-30 synthetic instead.

How do I know which Toro kit I need?

Read your engine brand and serial range, then match them in the finder above. Toro engine walk-behinds take the 20240, Briggs walk-behinds take the 20234 or 20298, and TimeCutter zero-turns take a 20294, 20295, or 20296.

Does the 20240 fit my Personal Pace?

Usually not, because most Personal Pace mowers run a Briggs & Stratton engine, which takes the 20234 instead. Lift the bag flap and confirm the engine badge before buying.

Can I use an aftermarket Toro tune-up kit?

Yes, reputable aftermarket kits from sellers like The Mower Shop and Proven Part use equivalent Briggs and Toro parts and perform the same. Just confirm the part numbers and check whether fuel treatment is included, since some kits leave it out.

How often should I tune up my Toro mower?

Once a year is the standard, ideally each spring before the first cut, which keeps the engine starting cleanly. The spark plug can stretch to roughly every 50 hours if you prefer a usage-based schedule.

Where can I buy a Toro tune-up kit cheapest?

Genuine kits stock at Home Depot, Lowe's, Ace Hardware, Amazon, and Tractor Supply, and prices shift season to season. Compare at least two retailers, and always confirm fitment by your serial before checkout.

Bringing It Together

The Toro tune-up kit you need is decided by your engine and serial range, not by the name printed on the deck, and that single habit, reading the engine label first, is what separates a 30-minute spring service from a wasted trip back to the store. Walk-behind owners land on the 20240 or the Briggs 20234 and 20298; TimeCutter owners step up to the 20294 through 20296 family with its heavier oil and air-cleaner caveat.

From there the choice is only OEM versus a third-party kit, and both are sound as long as the part numbers match and you know whether the fuel treatment is in the box. Decode the engine, match the row, confirm the price at two retailers, and your Toro is set to start on the first pull this season.
