Briggs & Stratton Lawn Mower Tune-Up in One Afternoon

The short version: A briggs and stratton lawn mower tune up is four jobs done once a year: clean or replace the air filter, change the oil, service the spark plug, and drain old gas for fresh fuel with stabilizer. On my Quantum push mower it took about 28 minutes of hands-on work and roughly $24 in parts. A shop quoted me around $95 for the same job.

Last spring my Briggs & Stratton push mower turned over four times and quit, the way it does every April. Twenty-eight minutes later it started on the first pull, and the whole fix cost less than a large pizza.

That is the promise of this guide. You will do the entire job in one afternoon, know exactly which parts your engine takes, and decide for yourself whether a shop is worth the money.

This article is the Briggs-specific corner of the complete lawn mower tune-up routine, so when a single step deserves its own deep dive, I point you to it.

What a Briggs & Stratton Lawn Mower Tune-Up Includes

A Briggs & Stratton lawn mower tune up is the once-a-year service that keeps a small engine starting easily and running clean. According to the official Briggs & Stratton tune-up steps, the routine is four parts: change the air filter, change the oil, change the spark plug, and protect the fuel system with fresh gas plus stabilizer.

That is the whole briggs and stratton engine tune up for a walk-behind or riding mower. Everything else in this guide is detail on doing those four jobs well.

The order matters less than doing all four. I work top to bottom: filter, oil, plug, fuel, because that path matches how the parts sit on most engines and saves walking around the mower twice.

This guide covers walk-behind and riding mowers. A briggs and stratton power washer tune up follows similar logic but adds a pump service, so treat this as mower-specific.

One safety note before any step: pull the spark plug lead off the plug and keep it clear of the terminal so the engine cannot fire while your hands are near the blade.

Find Your Engine's Model and Type Number First

Before buying a single part, find your Briggs & Stratton model, type, and code number, because the right kit and the right spark plug both depend on it. Briggs & Stratton stamps this three-number set into the metal, and the company's model number locator explains that the first number is the model, the second is the engine type, and the third is the code.

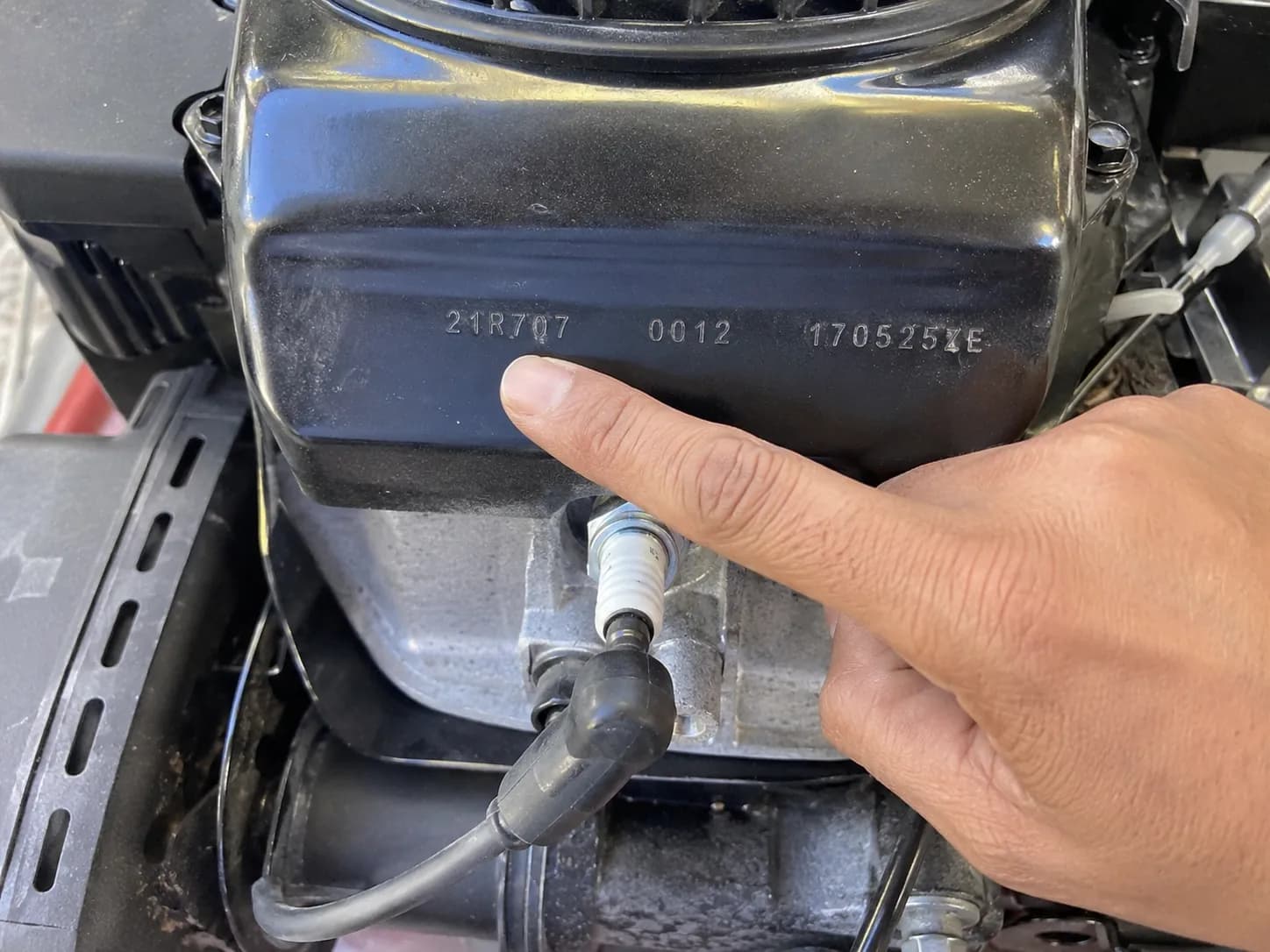

On most push mowers the numbers sit on a metal plate or are stamped into the shroud cover above the spark plug. Write all three down before you shop.

On my Quantum the numbers hid under the black decorative shroud. Two small bolts and a quarter-inch socket later, I could read the model, type, and code stamped on the top front of the engine near the plug.

Skip this step and you risk the classic wrong-kit return. The number tells you whether you have a Quantum, an Intek, or a V-twin, which decides everything downstream.

Tools and Parts You Need for the Tune-Up

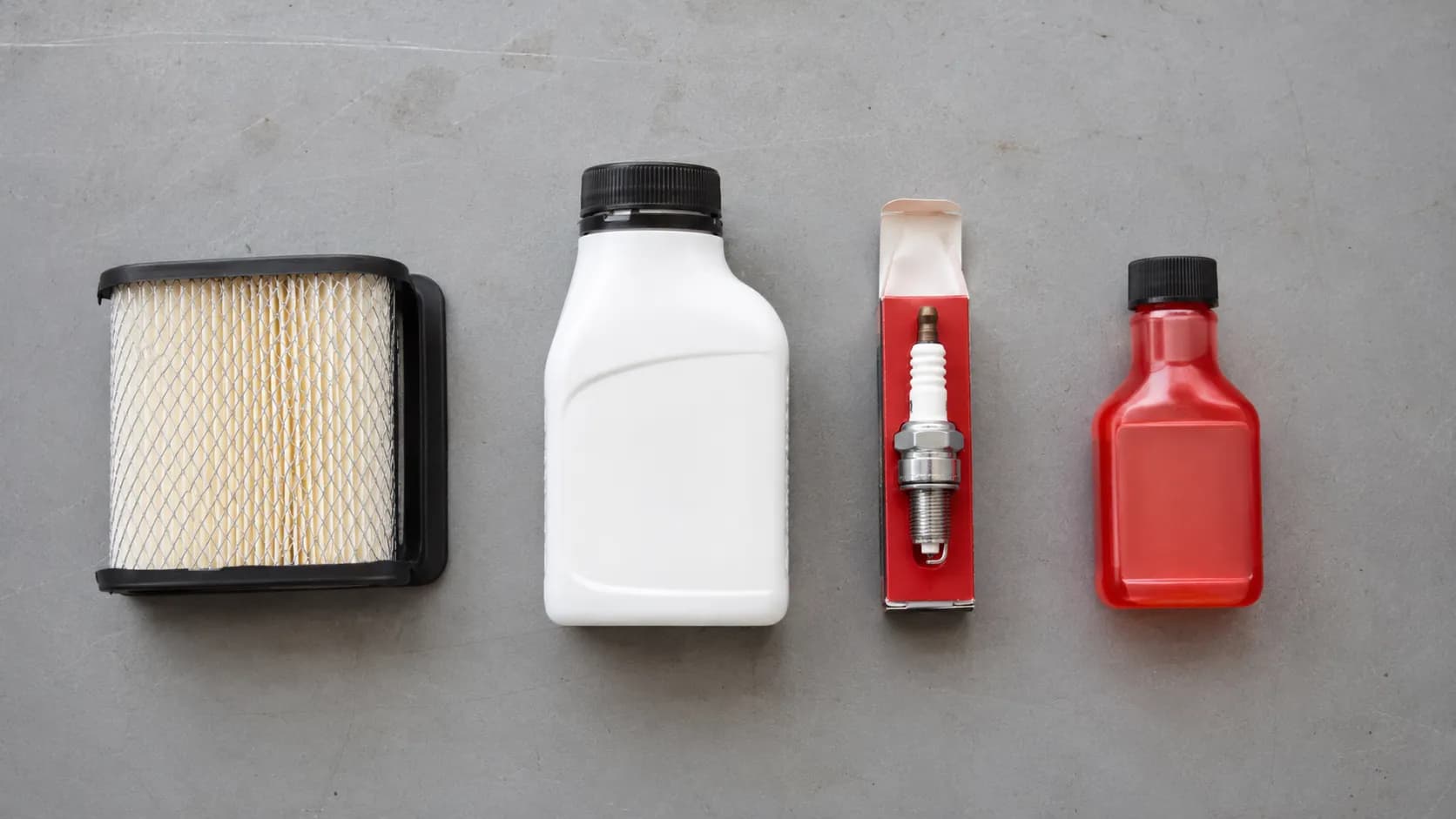

The tools for a Briggs & Stratton tune up are modest, and most owners already have them: a socket wrench, a spark plug socket, a feeler or gap gauge, an oil drain pan, and a funnel. For briggs and stratton tune up parts you need a fresh air filter, the correct spark plug, oil, and fuel stabilizer.

A genuine Briggs & Stratton 5140 kit bundles the filter, plug, oil, and stabilizer for Quantum push engines for about twenty dollars, which is the simplest way to buy.

Here is the tool and parts split for a typical push-mower job.

Tools (you likely own these):

• Socket wrench with a quarter-inch drive and extension

• Spark plug socket (rubber insert holds the plug)

• Feeler gauge or wire gap gauge

• Oil drain pan or an empty jug

• Funnel and a few shop rags

Parts (buy to fit your model):

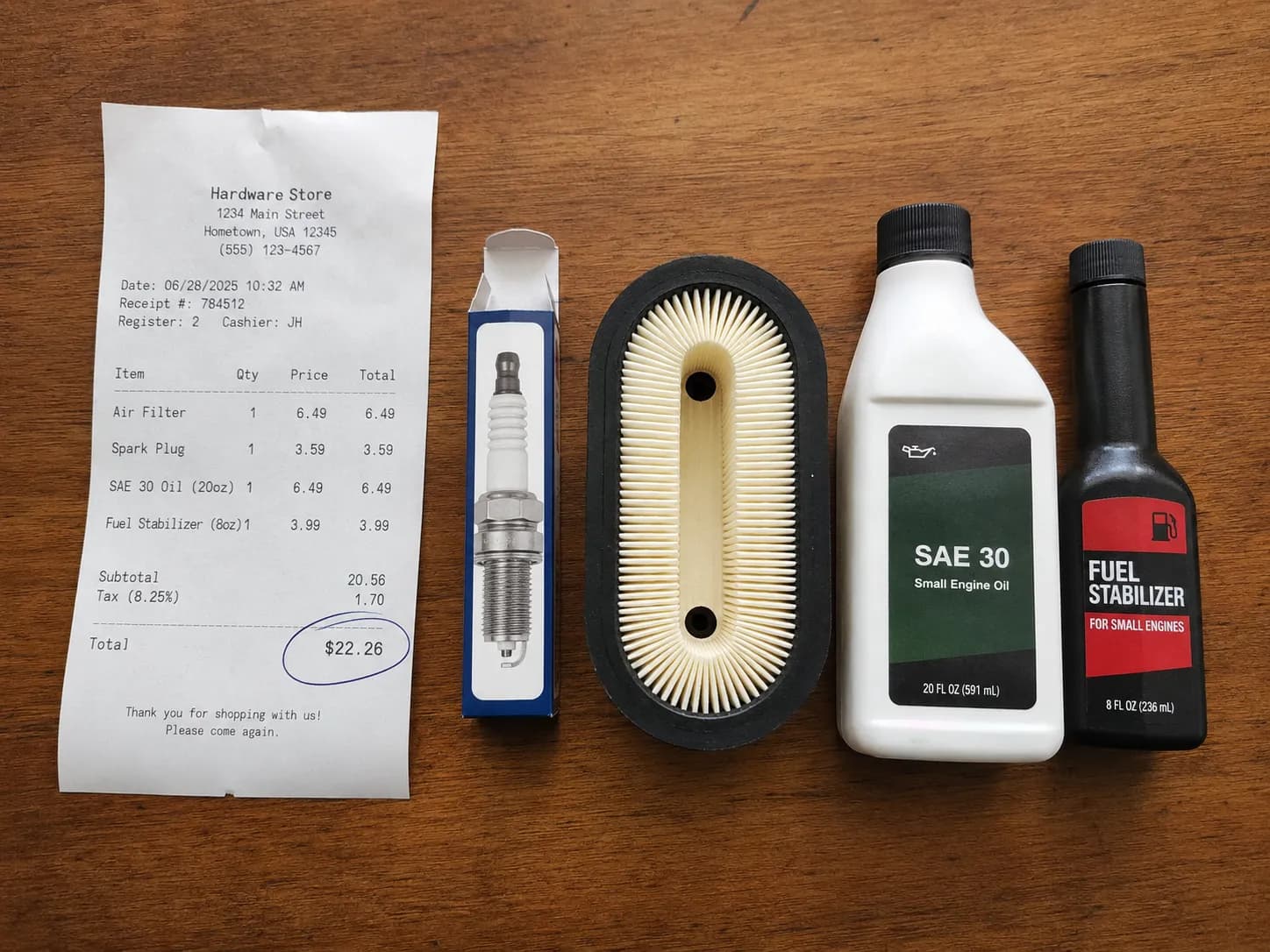

My all carte parts came to about $24 with tax: filter, plug, a bottle of SAE 30, and stabilizer. Buying the kit instead would have landed near the same price and saved a second trip.

Clean or Replace the Air Filter

The air filter is the first job in a Briggs & Stratton push mower tune up because a clogged filter chokes the engine and wastes fuel. Briggs & Stratton uses three filter styles, and the company's air filter guidance says to service a foam or pre-cleaner element about every 25 hours or each season and to replace paper cartridges on the same seasonal cadence.

A paper filter that looks grey and packed with clippings is past saving, so replace it rather than tapping it clean. This single step is the cheapest way to restore easy starting.

Loosen the cover screw, lift the old element out, and set the new one in with the pleats facing out. For the foam-and-paper combination, install a dry pre-cleaner and do not oil it.

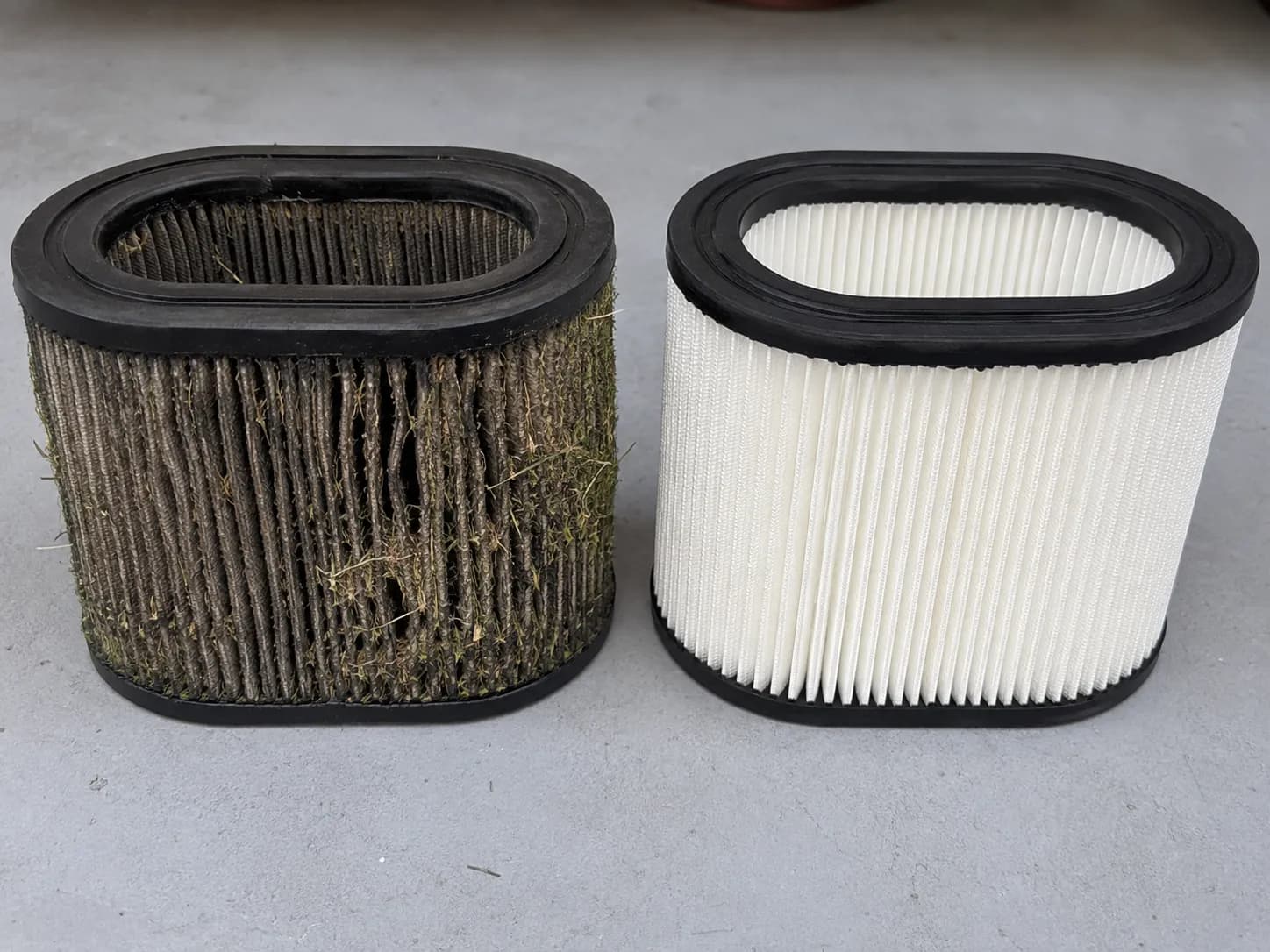

My paper element came out grey with a season of clippings. I tapped it on the bench, held it to the light, saw almost no daylight through the pleats, and swapped it.

If your mower uses a foam or dual element instead of paper, the cleaning method differs. The full walk-through lives in the guide on cleaning a Briggs air filter, so check it for your exact element type.

Check or Change the Oil

Oil is the second job, and getting the grade right matters as much as the change itself. Briggs & Stratton's oil guidance calls for SAE 30 above 40°F, notes that 5W-30 synthetic works well across most temperatures, and says to change oil after the first 5 hours of a new engine, then every 50 hours or once per season.

Run the engine to warm the oil first, then stop it and disconnect the spark plug lead before you drain. Warm oil carries out more of the grit that wears an engine.

Here is the viscosity at a glance for these tune up specs.

Tilt the mower with the air filter side up, drain into a pan, then refill to the dipstick mark. Do not overfill, since too much oil is as harmful as too little.

I drained about 18 ounces of dark oil from my Quantum and refilled with fresh SAE 30 to the mark.

What Does "Just Check & Add" Mean?

Some newer Briggs & Stratton engines are labeled Just Check & Add, meaning they are designed to have oil checked and topped off rather than drained on a fixed schedule. If your engine carries that label, follow it: check the level every use and add as needed instead of doing a seasonal drain.

My older Quantum is not a Just Check & Add engine, so I still drain and refill it each spring.

Service the Spark Plug and Set the Gap

The spark plug is the third job and the one most likely to fix a hard-starting briggs and stratton engine tune up. Briggs & Stratton's spark plug and gap reference sets the gap for most engines, including Quantum and Intek, at 0.030 inches, and warns against re-gapping platinum, iridium, or twin-tip plugs because the fine electrodes can break.

New plugs ship pre-gapped, yet they are not always perfect, so confirm the gap before installing. A correct gap gives a strong spark under compression and prevents the misfires behind a fouled, wet, sooty plug.

These are the spark plug tune up specs for a typical push mower.

Pull the lead, brush dirt away from the base, and remove the old plug with a spark plug socket. Set the new plug to gap, thread it in by hand, then torque it so you neither leave it loose nor strip the aluminum head.

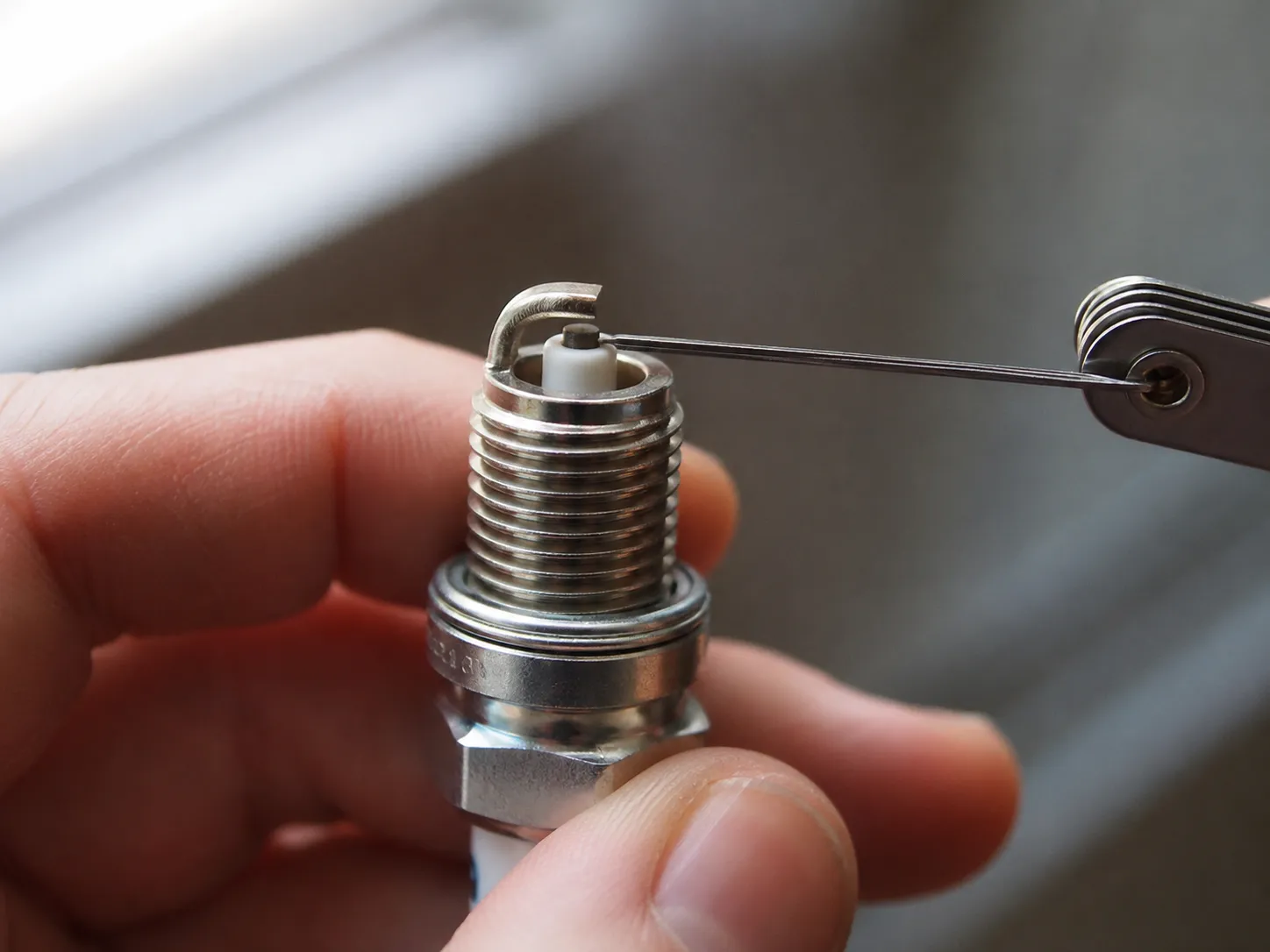

My new plug measured 0.028 inches straight out of the box, not the 0.030 the engine wants, so I opened it slightly with a gap gauge before installing. Pre-gapped does not always mean correctly gapped.

Choosing the right plug, reading wear, and the full gap method get their own treatment in the guide on changing a Briggs spark plug, worth a read if your old plug looks burned or oily.

Drain Stale Fuel and Add Fresh Gas With Stabilizer

Fresh fuel is the fourth job and the one owners skip most, which is why so many spring no-starts trace back to the tank. Briggs & Stratton warns that gas goes stale in as little as 30 days and recommends adding a stabilizer such as STA-BIL every time you fill the can, part of the official Briggs & Stratton tune-up routine cited earlier.

Stale gas leaves gum and varnish that clog the carburetor, so old fuel is worth draining before the season starts. Stabilized fresh fuel prevents the most common warm-weather starting trouble.

Siphon or run out the old gas, refill with fresh fuel, and add stabilizer at the dose on the bottle. Store the mower with stabilized fuel so next spring starts clean.

My tank smelled like varnish after winter. I siphoned out roughly four-tenths of a gallon of cloudy old gas, refilled with fresh stabilized fuel, and the surging at idle stopped.

Handle fuel outdoors or in a ventilated space, keep it away from any spark or flame, and let the engine cool before you work near the tank.

Which Tune-Up Kit Fits My Engine?

The most common question owners ask is which tune up kit fits my engine, and the answer is decided entirely by your Model-Type-Code. For a Quantum push mower, the Briggs & Stratton 5140B kit fits the 625E, 675Ex, 725Ex, and Quantum 3.5 to 6.75 HP engines, and it includes 18 ounces of SAE 30 oil, an air filter, a spark plug, and fuel treatment.

Riding mowers with larger Intek or V-twin engines take a different kit, such as the 84002441. Match the kit to the engine, never to the mower brand on the deck.

Here is the quick fitment map. Confirm against your own numbers before buying.

This is where the Intek vs Quantum vs Vanguard distinction earns its keep. A Quantum 5140 kit will not suit an Intek V-twin, and guessing by horsepower instead of reading the numbers is how owners end up returning parts.

When I matched my engine's model number to the 5140 Quantum kit, I cross-checked the box contents against my parts list before paying, which is the habit that prevents the wrong-kit return.

Picking between OEM kits and aftermarket options, and reading what each kit actually contains, is the job of the dedicated Briggs tune-up kit buyer's guide. Start there if you are unsure which box to grab.

How Often a Briggs & Stratton Needs a Tune-Up, and How Long It Takes

A Briggs & Stratton mower tune up is a once-a-year job for most owners, usually in spring. Briggs & Stratton's riding mower tune-up guidance puts the full riding job at about 30 minutes performed once a year, and notes it can cut emissions by up to 50%.

The company's maintenance schedule sets the supporting intervals: check oil every use, service the air filter around every 25 hours, and replace the plug each season. A push mower goes faster than a riding mower.

Here is the cadence in one view.

I keep a rough hour log on a card in the shed. The air filter gets a clean around the 25-hour mark mid-season, while the oil and plug wait for the spring tune-up.

My push-mower tune-up ran about 28 minutes of hands-on time across a single afternoon, setup and cleanup included, which lines up with the 30-minute riding figure.

For the deeper breakdown of timing by mower type, the guide on how often a mower needs servicing covers the edge cases.

DIY vs Shop: What a Briggs & Stratton Tune-Up Costs

A do-it-yourself Briggs & Stratton tune up costs roughly the price of the parts, while a shop adds labor. A genuine Quantum kit runs about twenty dollars at major retailers, and buying parts separately lands in the same range, so most push-mower owners spend between twenty and thirty dollars.

A shop tune-up adds drop-off, labor, and pickup, which is convenience you pay for. The gap between the two paths is the labor you supply yourself.

Here is how the costs compared for my job.

My local shop quoted around $95 for the same four jobs I did for about $24. The shop is worth it when you are short on time, lack the tools, or hit a problem a tune-up will not fix.

For regional pricing and riding-mower figures, the dedicated breakdown on what a tune-up usually costs goes deeper than this overview.

Your Printable Briggs & Stratton Tune-Up Checklist

This checklist captures the whole lawn mower tune up briggs stratton routine on one page so you can work without scrolling. Print it, tape it inside the shed, and write your Model-Type-Code at the top so the right parts are one glance away.

Each box maps to a step above. Check them off in order and the engine is ready for the season.

Tune-up checklist:

• [ ] Engine Model-Type-Code written down

• [ ] Spark plug lead disconnected for safety

• [ ] Air filter cleaned or replaced

• [ ] Oil drained and refilled to the dipstick mark (or checked and topped, if Just Check & Add)

• [ ] Spark plug gapped to 0.030 in and torqued

• [ ] Old fuel drained, fresh gas plus stabilizer added

• [ ] Mower started and idled smooth

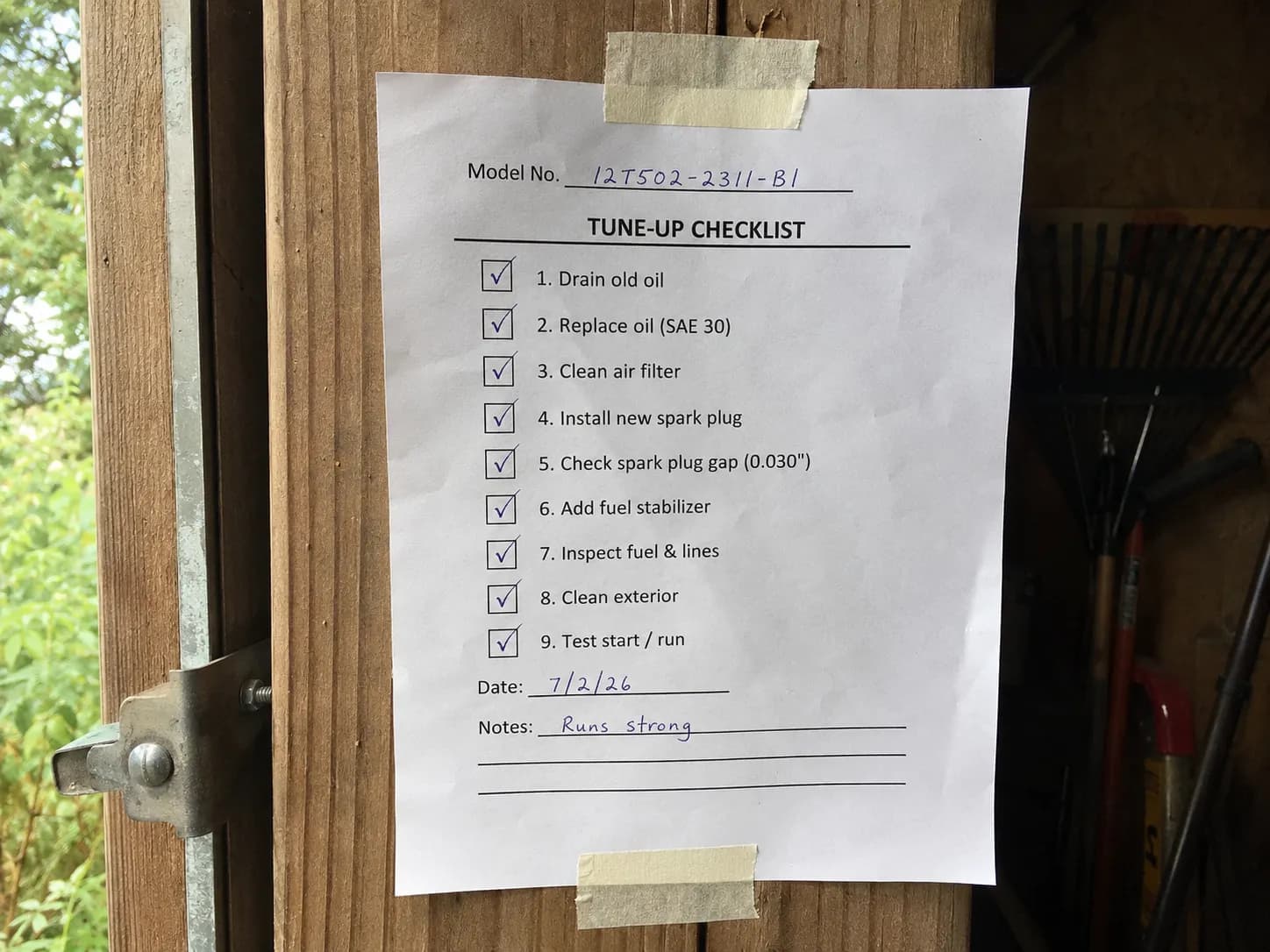

I taped my filled-in copy inside the shed door with the model number across the top. Next spring I will not have to pull the shroud again to remember what fits.

FAQs on Briggs & Stratton Tune-Up

What does a Briggs & Stratton tune-up include?

It includes four jobs: service the air filter, change the oil, replace and gap the spark plug, and refresh the fuel with stabilizer. Done once a year, that covers the whole routine for a push or riding mower.

What spark plug gap does a Briggs & Stratton use?

Most Briggs & Stratton engines, including Quantum and Intek, use a 0.030 inch gap. Do not re-gap platinum, iridium, or twin-tip plugs, since their fine electrodes can break.

How do I know which tune-up kit fits my engine?

Read the Model-Type-Code stamped near the spark plug on the shroud, then match a kit to those numbers. A Quantum push mower takes a 5140-style kit, while a riding V-twin takes a larger one.

How often should I tune up a Briggs & Stratton mower?

Once a year, usually in spring, with an air-filter service around the 25-hour mark mid-season. Check the oil before every use.

Will a tune-up fix a mower that will not start?

Often, since a fresh plug and fresh fuel cure most spring no-starts. It will not fix a gummed carburetor or a mechanical fault, which need their own repair.

One honest limit to close on. A tune-up is maintenance, not a cure-all.

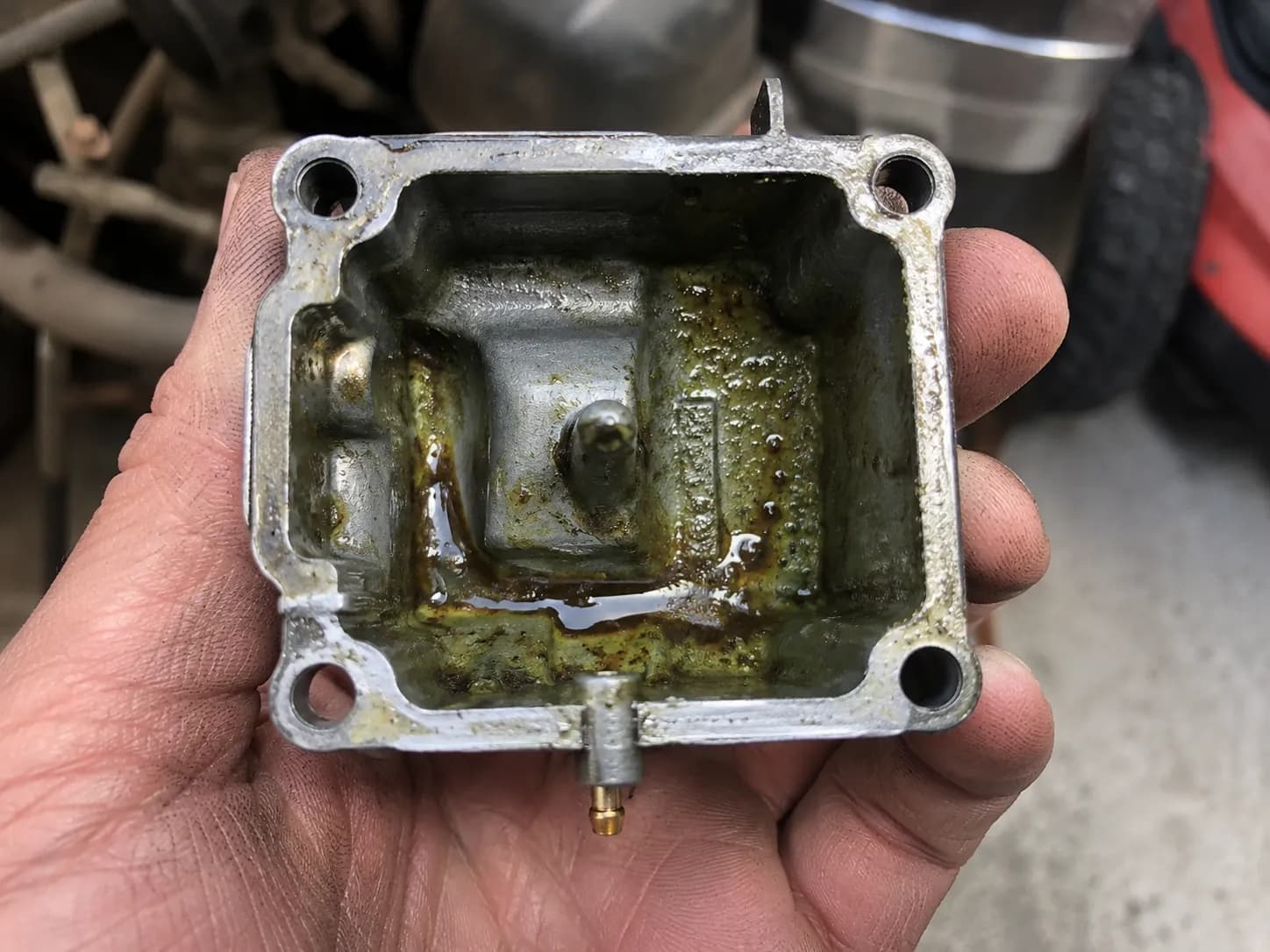

The spring my mower would not start despite a fresh plug, the real culprit was a gummed carburetor bowl from old fuel, a job beyond the four steps here.

A Briggs & Stratton tune-up rewards an hour of attention with a season of easy starts. Do the four jobs in spring, keep your Model-Type-Code handy for parts, and you will spend far less than a shop charges while knowing exactly what your engine got.

That is the quiet satisfaction of the tune up briggs stratton lawn mower engine owners learn to look forward to, the first clean pull of the year.
