Buy a Toro air filter by your mower's model number alone and there is a real chance the part that shows up will not fit. The reason catches almost everyone: the same Toro Recycler line has shipped with three different engines over the years, and the engine, not the deck, decides the filter.

This guide decodes that. Read the engine off your deck tag, find your row in the decoder, and you will know the exact OEM part for your Toro lawn mower air filter, plus whether the cheaper generic is a smart buy or a returns slip waiting to happen.

Quick Answer: Your Toro Air Filter in 60 Seconds

The right air filter for a Toro lawn mower depends on its engine, not just its model. Most Toro Recycler and Super Recycler walk-behinds with a Toro OHV engine use OEM filter 119-1909, a paper element with a foam pre-cleaner.

Briggs-engined Recyclers such as the 20332 use the flat Briggs 491588 instead. Toro Titan and TimeCutter zero-turns with twin-cylinder engines use OEM part 136-7806, and either way you check the deck tag for your engine before you buy.

The 60-second version: Find the engine on your deck tag first, then match the row in the decoder below. One Toro model number can point to two or three different filters.

Why One Filter Doesn't Fit Every Toro (Read Your Engine First)

A Toro lawn mower air filter is matched to the engine bolted under the deck, not to the mower's model number on its own. Across model years, a single Toro line such as the Recycler 22 has carried a Toro OHV engine, a Kohler Courage, or a Briggs and Stratton engine, and each one takes a different filter.

That is why a part listed as "fits Recycler 22" can still be wrong for your machine. The fix is simple: read the engine off the deck tag first.

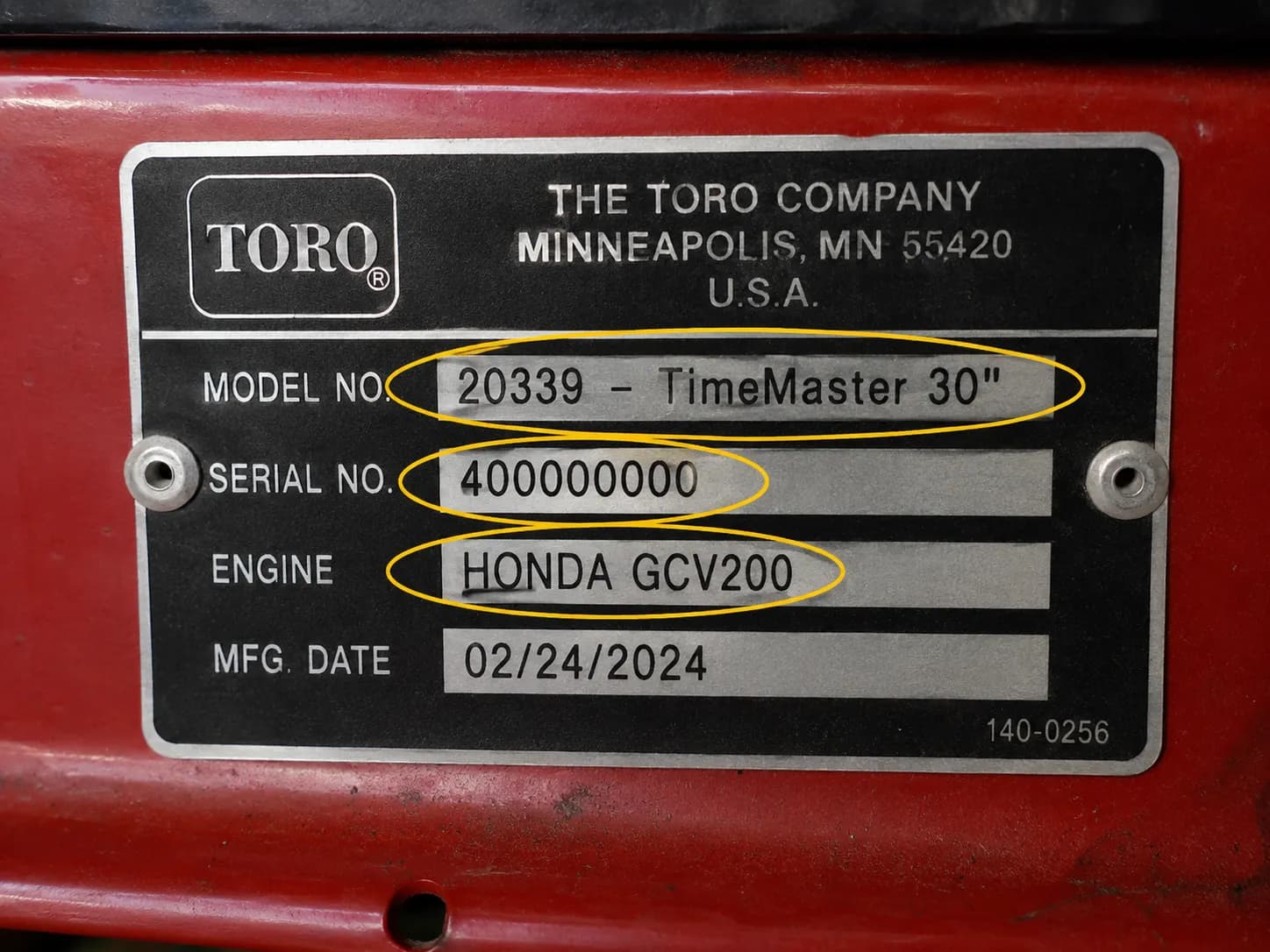

Your deck tag sits on the rear or underside of the housing on walk-behinds, and under the seat or behind a panel on riders. It lists the model and serial, while the engine is stamped on the engine shroud nearby.

Owners on small-engine forums learned this the hard way once Toro started building its own engines alongside Kohler and Briggs. The deck tag became the only reliable starting point.

Swapping the filter is one step in a wider service, so if you are here as part of a full seasonal tune-up, do the engine check first and the rest falls into place. Model number alone can mislead you, which is exactly why the decoder below routes by engine.

Trust note: Buying by model number alone is the single most common cause of a Toro air filter that arrives and does not seat. Confirm the engine before you order.

Toro Air Filter Decoder: Model + Engine to OEM Part Number

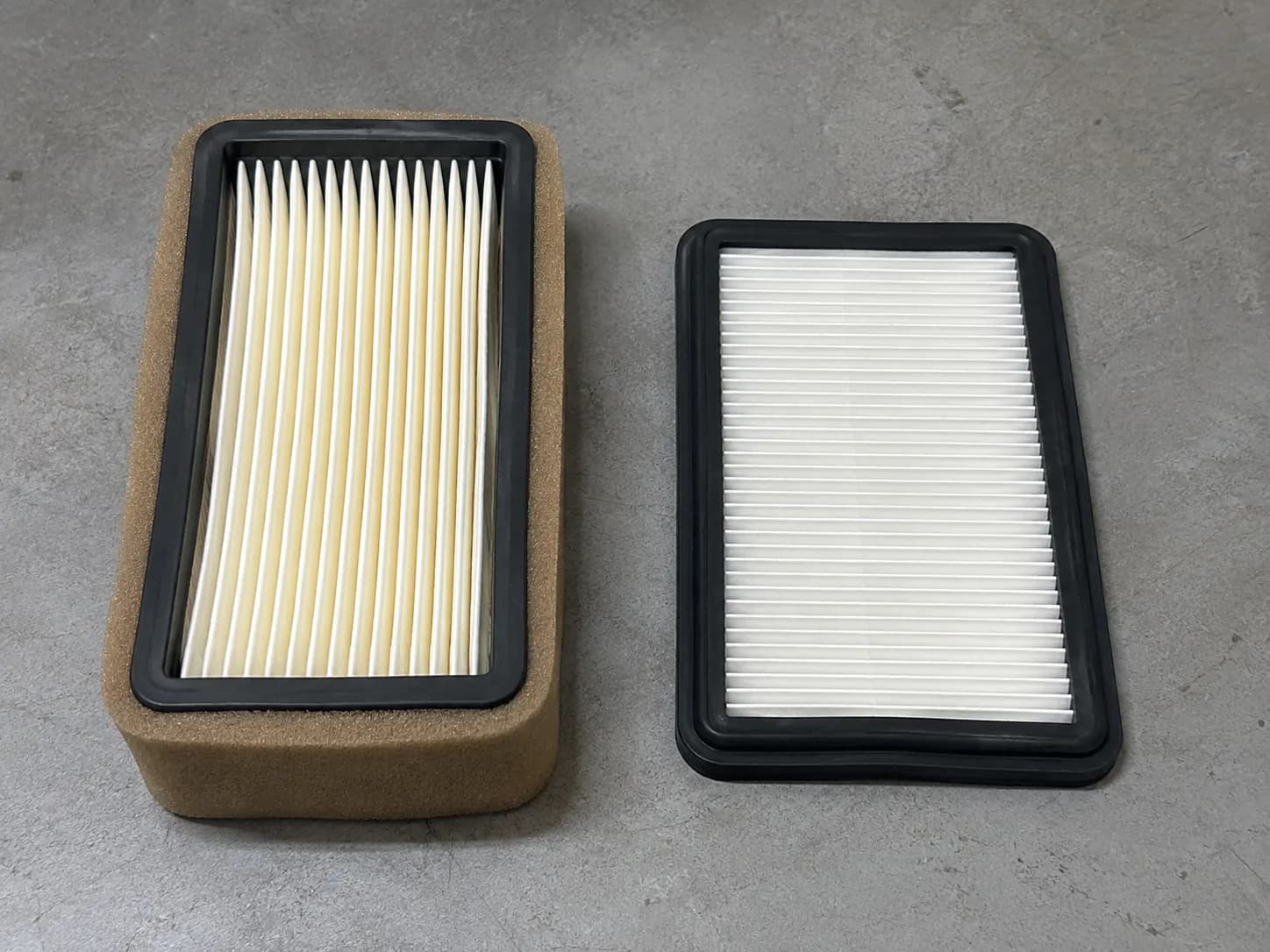

Toro air filters map cleanly once you route by engine family. A Toro OHV Recycler or Super Recycler uses 119-1909, while a Briggs-engined Recycler such as the 20330, 20332, or 20334 uses 491588 or 491588S.

A Toro twin-cylinder Titan or TimeCutter uses 136-7806, and the older Recycler paper element is Toro 98-9212. Match the engine on your deck tag to the row, then confirm against your owner's manual before ordering, because some models split across serial ranges.

The table below is what no single parts page gives you in one place: model line, engine, the OEM part, an aftermarket cross-reference, and the filter type together.

One row deserves a flag. The same "Recycler 22" badge covers a Toro OHV unit on 119-1909 and a Briggs unit on 491588.

Cross-checking the listings to confirm the 20332 is a Briggs filter is exactly what the parts finders never do for you. Match the engine, not the badge.

Toro Recycler 22 Air Filter (the Three-Engine Fork)

"Toro Recycler 22 air filter" has no single answer, because the 22-inch Recycler has shipped with three engines. A Toro OHV unit uses 119-1909, a Kohler Courage 149cc or 6.75 hp unit uses a Kohler 14-083-series element, and a Briggs-engined unit such as the 20332 uses the flat 491588.

Read the engine shroud or deck tag, then pick the matching filter. An aftermarket part labeled only "Recycler 22" usually assumes a Briggs engine.

Here is how to tell which of the three you have:

1. Find the engine name on the shroud or the deck tag (Toro, Kohler, or Briggs and Stratton).

2. If it reads Toro OHV, your filter is the 119-1909 kit (paper plus foam pre-cleaner).

3. If it reads Kohler Courage 149cc or 6.75 hp, you are on a 14-083-series element.

4. If it reads Briggs and Stratton, you are on the flat 491588 panel.

There is a useful supersession on the Kohler units. On my 2013 Home Depot Recycler the deck tag read a Kohler Courage XT6.75 with the original tan foam pre-cleaner, and the newer paper element with the rubber surround dropped straight into the same housing, a swap owners describe in detail on MyTractorForum.

Once you know your engine path, you can clean or swap the filter in a couple of minutes.

Trust note: "Fits Toro Recycler 22" aftermarket listings often default to the Briggs 491588 shape. If your engine is a Kohler or a Toro OHV, that part will not fit. Verify the engine first.

Foam vs Paper Pre-Cleaner: Which Your Toro Uses

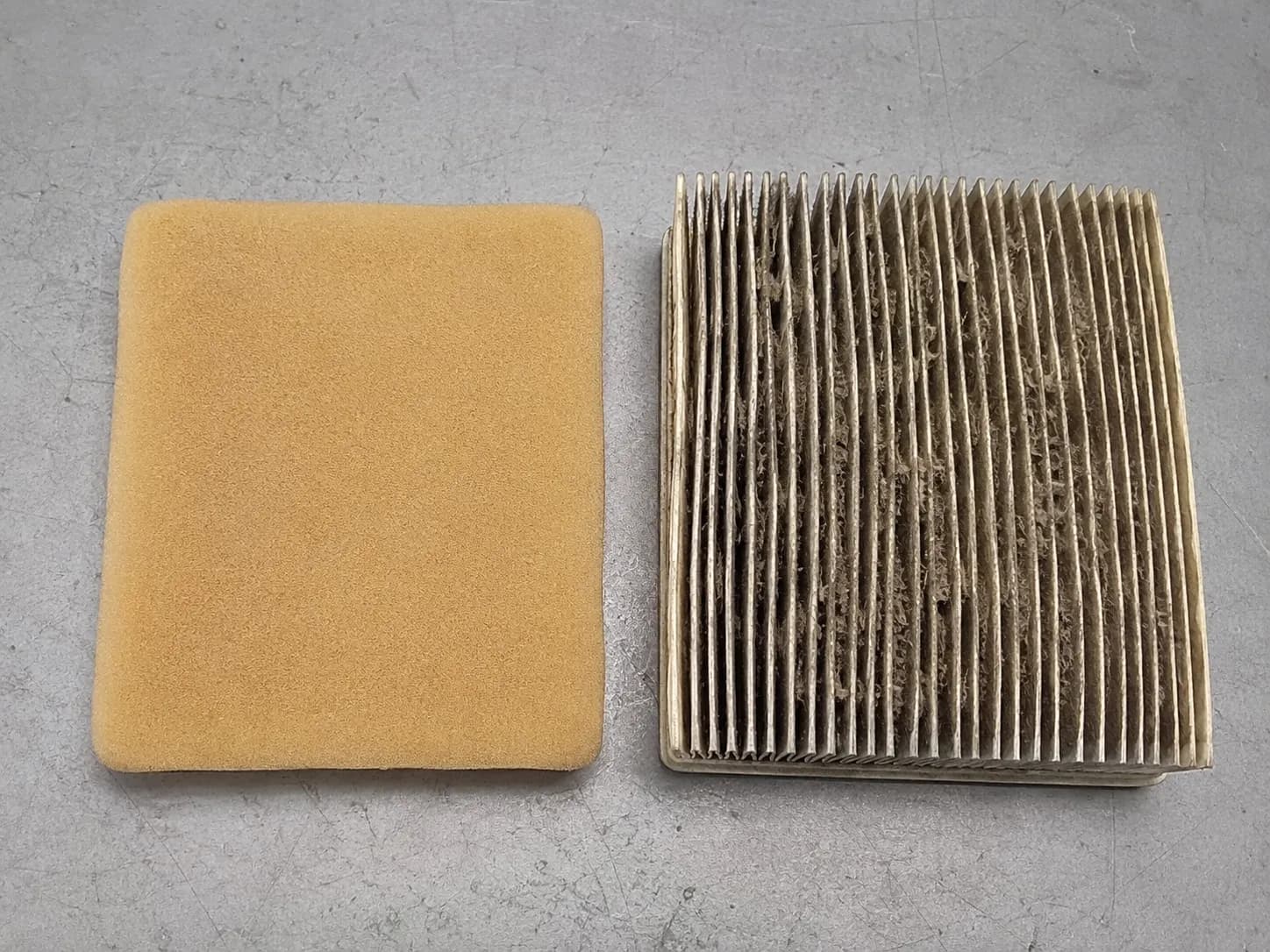

Toro mowers use one of three filter types: a foam pre-cleaner, a pleated paper element, or a dual setup of paper wrapped by a foam pre-cleaner. The care rule is not interchangeable.

A foam pre-cleaner can be washed in soapy water, dried, and lightly re-oiled, while a pleated paper element should be replaced, not washed, because soaking collapses the pleats and ruins the seal. Identify the type by sight before you clean or buy anything.

The forum vocabulary here is worth knowing, because owners shorthand these as the "crappy foam filter," the "orange filter," and the newer "blue filter," all describing the Kohler element's evolution from oiled foam to a rubber-edged paper cartridge. If your engine is not a Toro and you want to confirm a fit by measurement, you can decode any filter by size instead of by part number.

Trust note: Re-oiling a foam pre-cleaner too heavily chokes airflow and can make the engine run rich. A light coat, wrung out, is the goal.

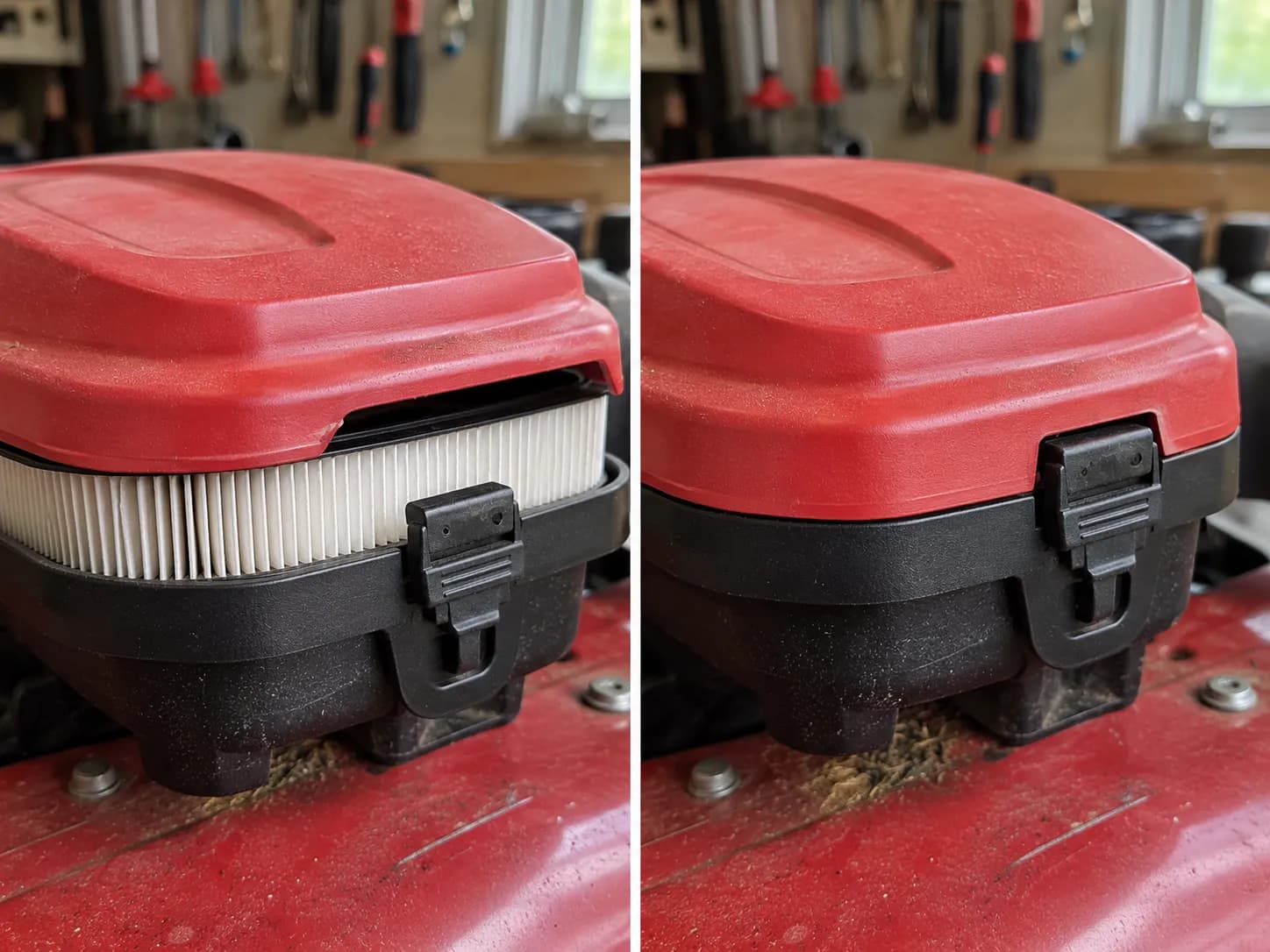

Air Filter Cover and Element Notes (the Lid That Won't Stay On)

Toro air-cleaner covers are model-specific, and a common complaint is the cover not staying latched rather than the filter itself failing. On the Toro OHV Recycler housing, the cover and base are dedicated parts, and the latch tabs rely on the element sitting at the correct height.

The usual cause of a loose lid is an over-thick aftermarket element pushing the cover off its tabs, not a broken latch. Matching element thickness to the OEM part fixes it.

Why does my air filter cover keep falling off?

Because the element is too tall for the housing. A bargain filter sold as a Recycler fit can sit proud of the seat, and the cover pops while you mow, which is why owners resort to taping the lid or warming the tabs with a lighter to re-bend them.

None of that is a real fix. The reliable answer is to seat an OEM-thickness element, or in the Kohler case, to cut a too-thick blue filter down to size as the forum threads describe.

Cover and housing parts are listed on the Toro product pages alongside the element, and on the OHV housing the cover and base carry their own numbers you can confirm before ordering. The forum-documented foam-to-blue element supersession also affects cover fit, since the rubber-edged paper element seats differently than the old foam.

Trust note: Duct-taping the cover is a stopgap that lets unfiltered air past the seal. Match the element thickness instead and the latch does its job.

OEM vs Aftermarket: Is the Generic Filter Worth It?

Aftermarket Toro air filters are often fine and cheaper, especially the 491588-class panels for Briggs-engined units sold in multi-packs, while OEM is the safer pick when fit precision matters. The clearest example is the Toro OHV 119-1909 housing, where an over-thick generic can stop the cover latching.

So the honest verdict is conditional: choose OEM for tight housings and guaranteed seating, and choose aftermarket for Briggs Recyclers and bulk value. We are not paid to push OEM, and sometimes the generic genuinely wins.

The decision in one line each:

• Choose OEM if you run a Toro OHV Recycler, want the cover to latch first time, or service a tight housing.

• Choose aftermarket if you run a Briggs-engined Recycler on the flat 491588 panel and want multi-pack value, which the Briggs cross-reference listings confirm fit the same engines.

In my own bench check, the inexpensive 491588 sealed cleanly on a Briggs Recycler, while a no-name element sold as a Recycler 22 fit sat too high on the Toro OHV unit and popped the lid on the first pass. Fit precision, not filtration, is where generics fail on Toro.

Where to Buy and What It Costs (Home Depot, Lowe's, Amazon, Toro)

You can buy a Toro air filter from toro.com and authorized Toro dealers for guaranteed OEM parts, from Home Depot, Lowe's, and Walmart for in-store pickup, and from Amazon for aftermarket multi-packs at the lowest per-filter cost.

The OEM 119-1909 kit typically runs higher than a Briggs 491588-class pack. For "near me," a Toro dealer is the surest OEM source.

For a wider retailer-by-retailer breakdown across mower brands, the full air-filter buying guide compares stock and price beyond Toro. Prices shift seasonally, and this table was captured in June 2026, so confirm before you order.

Trust note: The Briggs 491588S price is the current OEM store figure; the remaining ranges are working estimates captured in June 2026 and should be re-checked at purchase.

Toro Air Filter FAQs

What air filter does a Toro Recycler 22 use?

It depends on the engine. A Toro OHV unit uses 119-1909, a Kohler Courage 149cc uses a 14-083-series element, and a Briggs unit such as the 20332 uses the flat 491588. Read the engine off the deck tag.

What is the part number for the Toro 20332 air filter?

The 20332 is a Briggs-engined Recycler, so it uses the Briggs 491588 or 491588S flat panel filter, not the Toro 119-1909 kit.

Can I clean a Toro air filter or do I have to replace it?

Foam pre-cleaners can be washed and lightly re-oiled, while paper elements should be replaced, not washed. For the full method, see the dedicated cleaning walkthrough linked earlier.

Do AutoZone or Ace Hardware sell Toro air filters?

They usually stock aftermarket equivalents rather than OEM Toro parts, so for a guaranteed OEM filter a Toro dealer is the safer bet.

How often should I change a Toro air filter?

Once per season or about every 25 hours is the working rule, sooner in dusty conditions, and the foam pre-cleaner should be washed a couple of times across a dusty season.

What filter fits a Toro 149cc Kohler?

A Kohler Courage 149cc Recycler uses a 14-083-series element, with the newer rubber-edged paper "blue" element superseding the original foam pre-cleaner in the same housing.

The Bottom Line

The fastest way to buy the wrong Toro air filter is to trust the model number and ignore the engine. Decode the engine off your deck tag first, match your row in the decoder, and the exact part falls out: 119-1909 for Toro OHV Recyclers, 491588 for Briggs units, a 14-083 element for Kohler Courage machines, and 136-7806 for Titan and TimeCutter riders.

From there the choice is yours to make with eyes open. Go OEM when the housing is tight and the cover needs to latch, and go aftermarket when you run a Briggs Recycler and want multi-pack value.

Measure the element thickness either way so the lid stays put. That is the whole job: engine first, part second, fit confirmed.
